Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Seat, Steering-Column, Mirror Functions >> Seat Adjustment, Driver's Side >> Entrance Aid (Convertible)

Entrance Aid (Convertible)

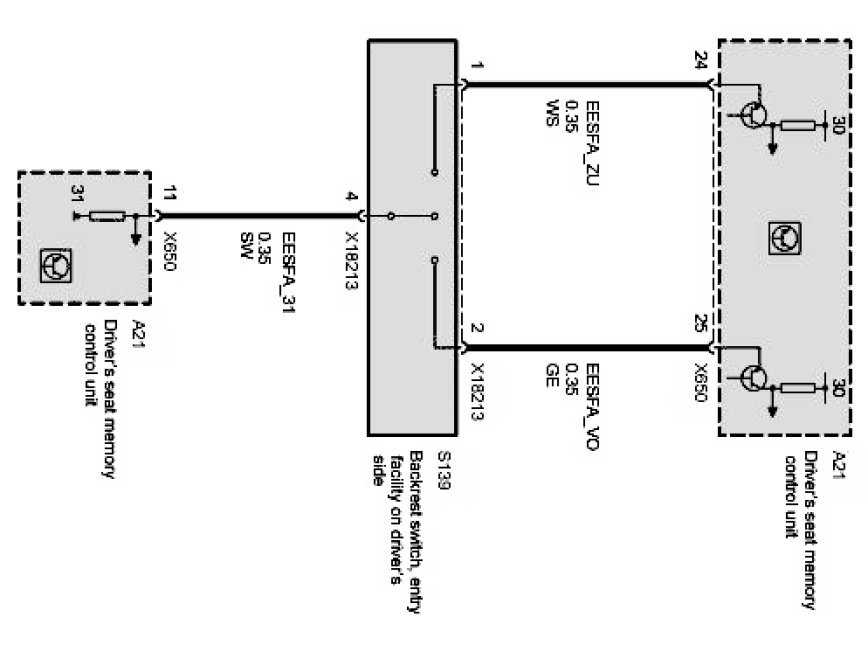

Backrest switch, entry facility, driver's side:
