M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Locking and Security Functions
>>
Power Window
>>
Rear Window Lift (Saloon or Touring or Convertible)
>>
Power-Window Mechanism, Passenger Side, Rear
>>
Rear Power Window, Driver's Side (Without Convertible)
Rear Power Window, Driver's Side (Without Convertible)

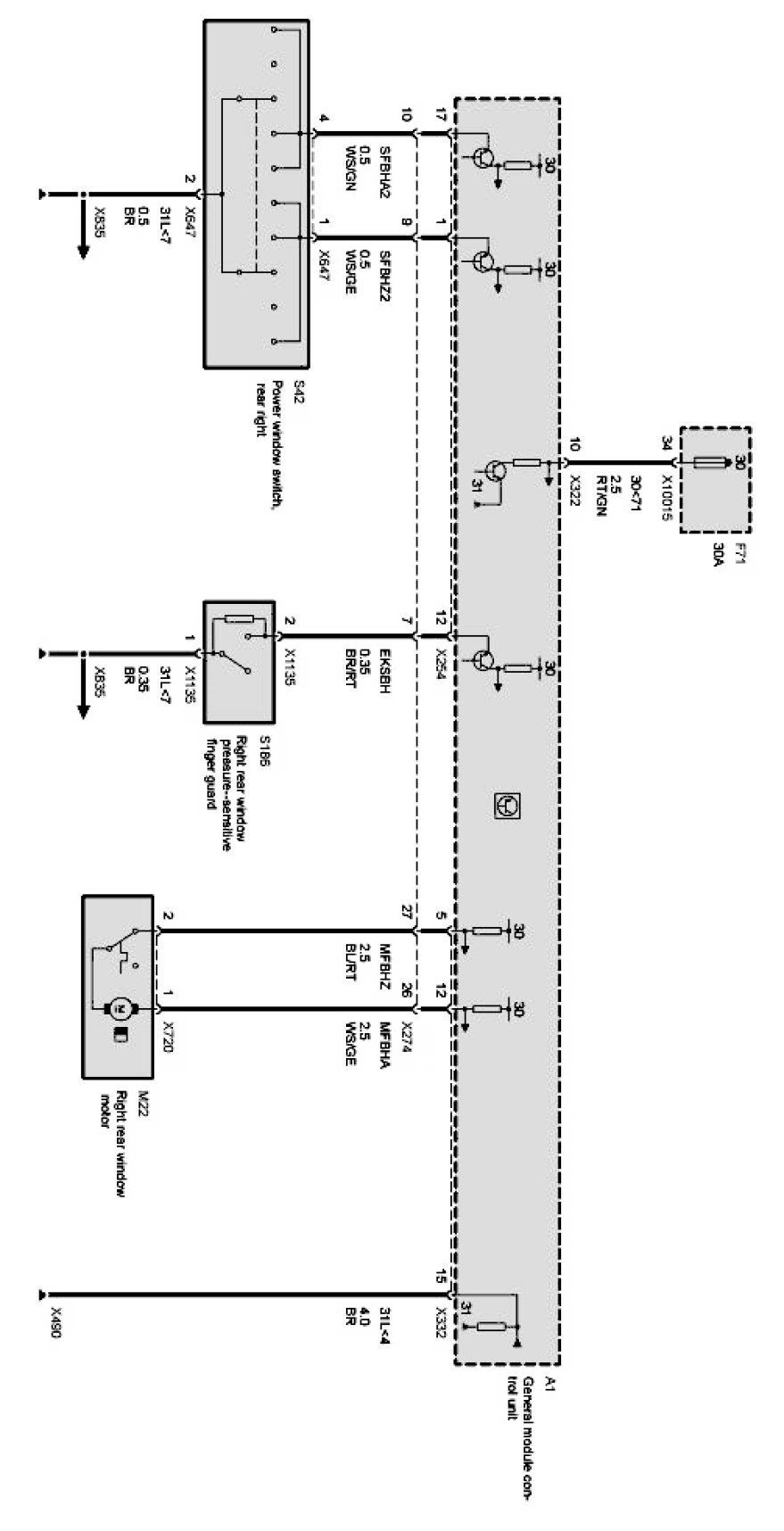

Rear power window, passenger's side:
