Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Trailer Lighting >> Trailer >> Right Side of Trailer

Right Side of Trailer

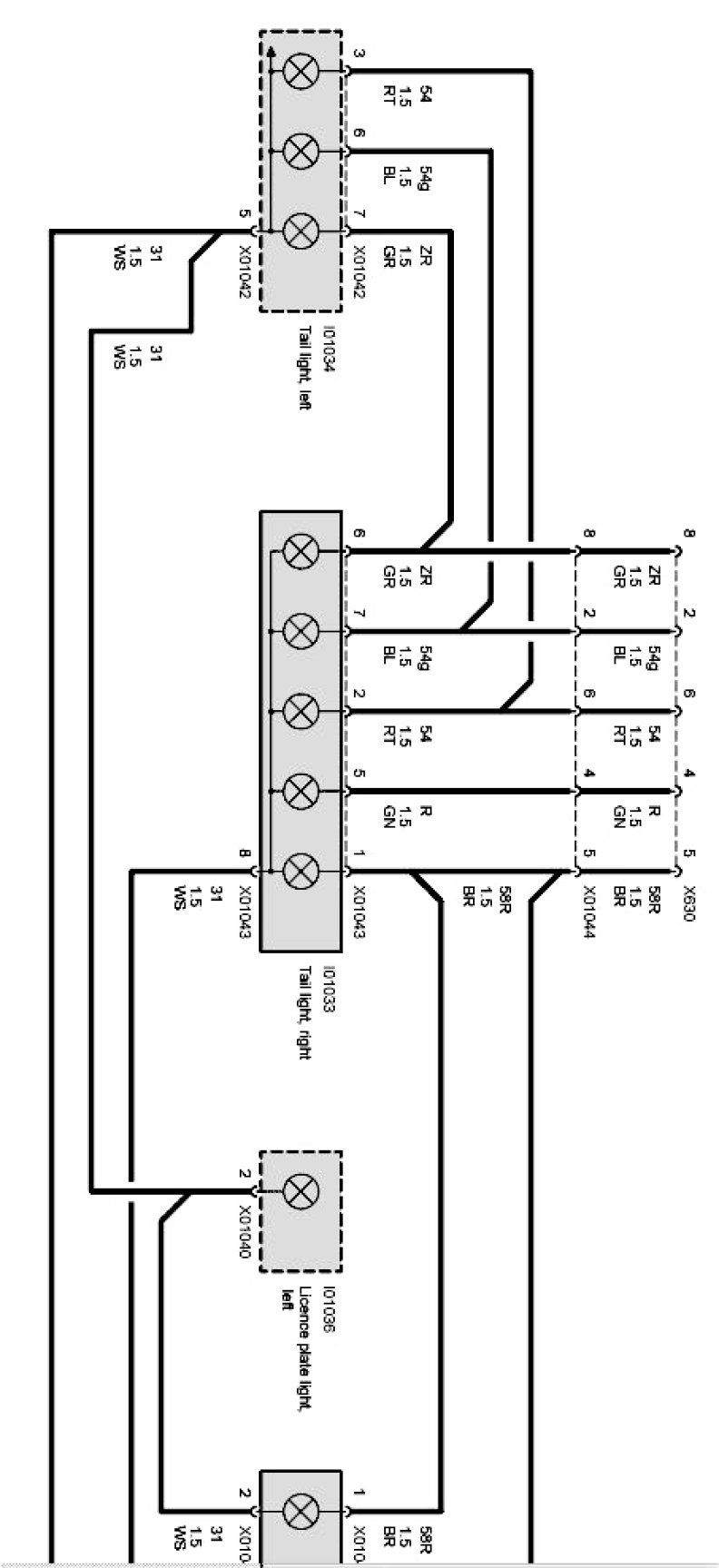

Right side of trailer Part 1:

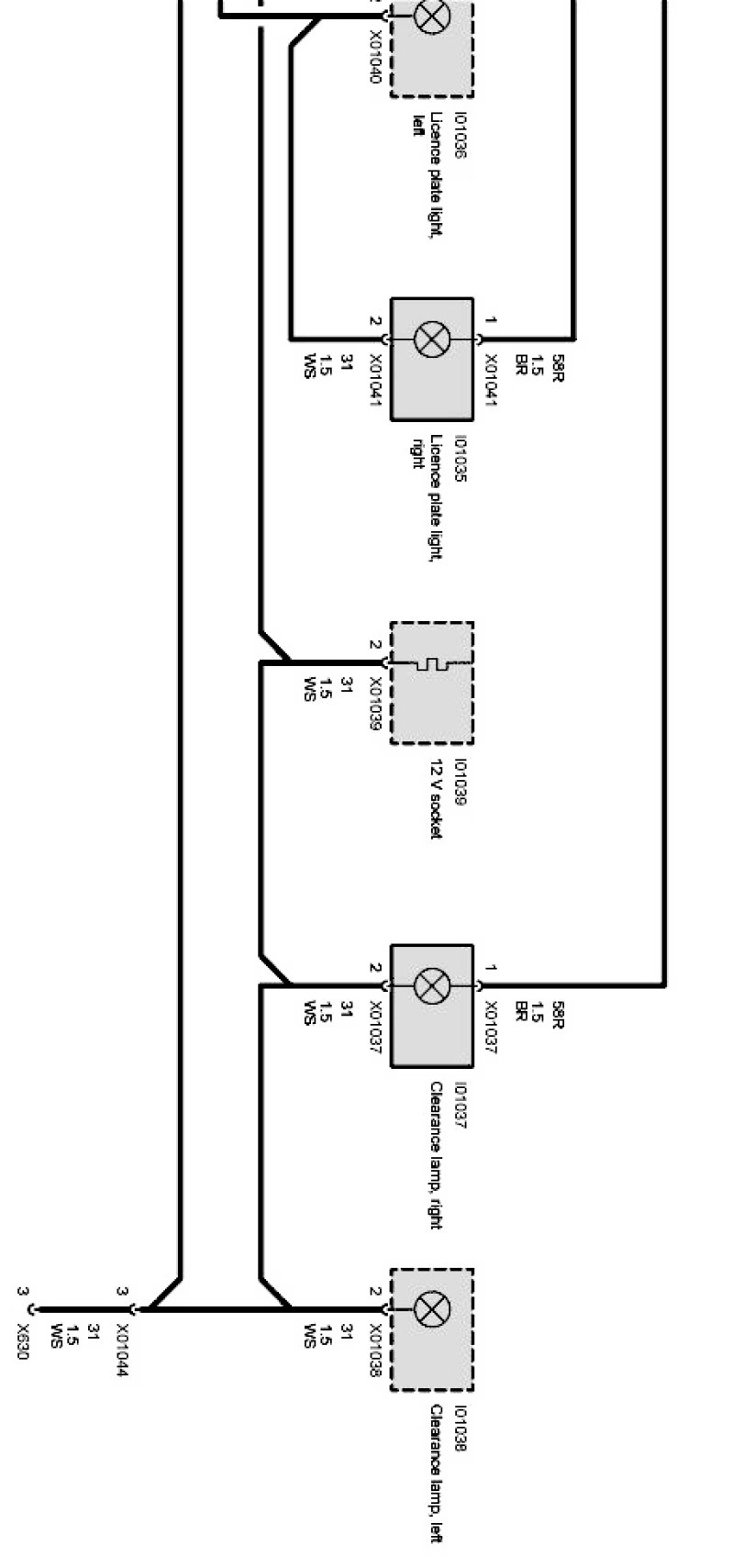

Right side of trailer Part 2:
