M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Lighting
>>
Hazard-Warning System
>>
Supplementary Turn Signal Lamp, Right Side
>>
Turn Signal Indicator ((Coupe or Convertible) As of 03/03 With DME Motor Electronics MSS54)
Turn Signal Indicator ((Coupe or Convertible) As of 03/03 With DME Motor Electronics MSS54)

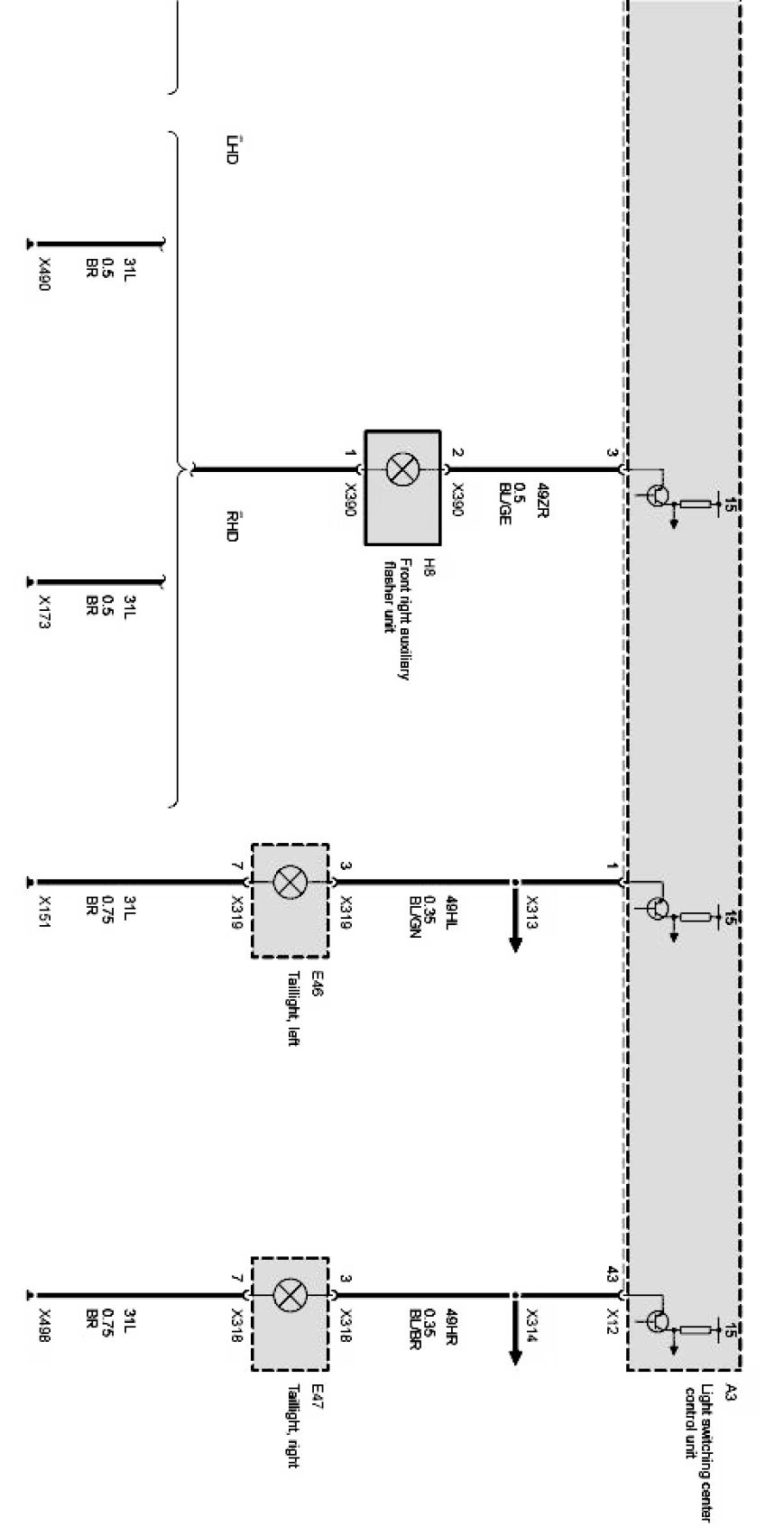

Turn indicators Part 1:
Turn indicators Part 2:
