Heat Exchanger Sensor (IHKA Integrated Automatic Heating/A/C or IHKR Integrated Heating/A/C Regulation)

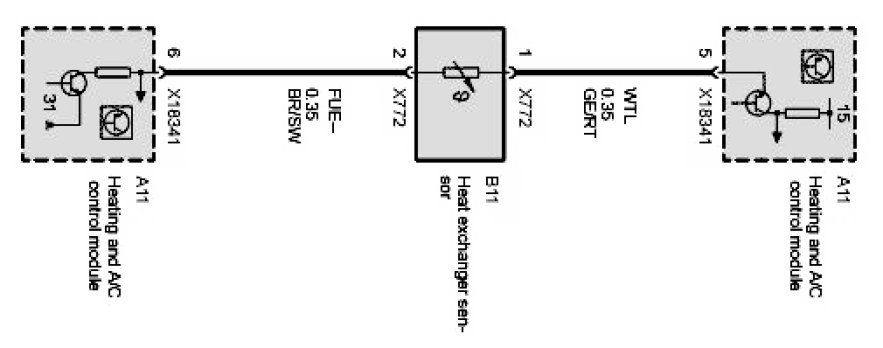

Heat-exchanger sensor:
