Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Displays and Information >> Display and Information Functions (DME Motor Electronics MSS54 As of 04/03)

Display and Information Functions (DME Motor Electronics MSS54 As of 04/03)

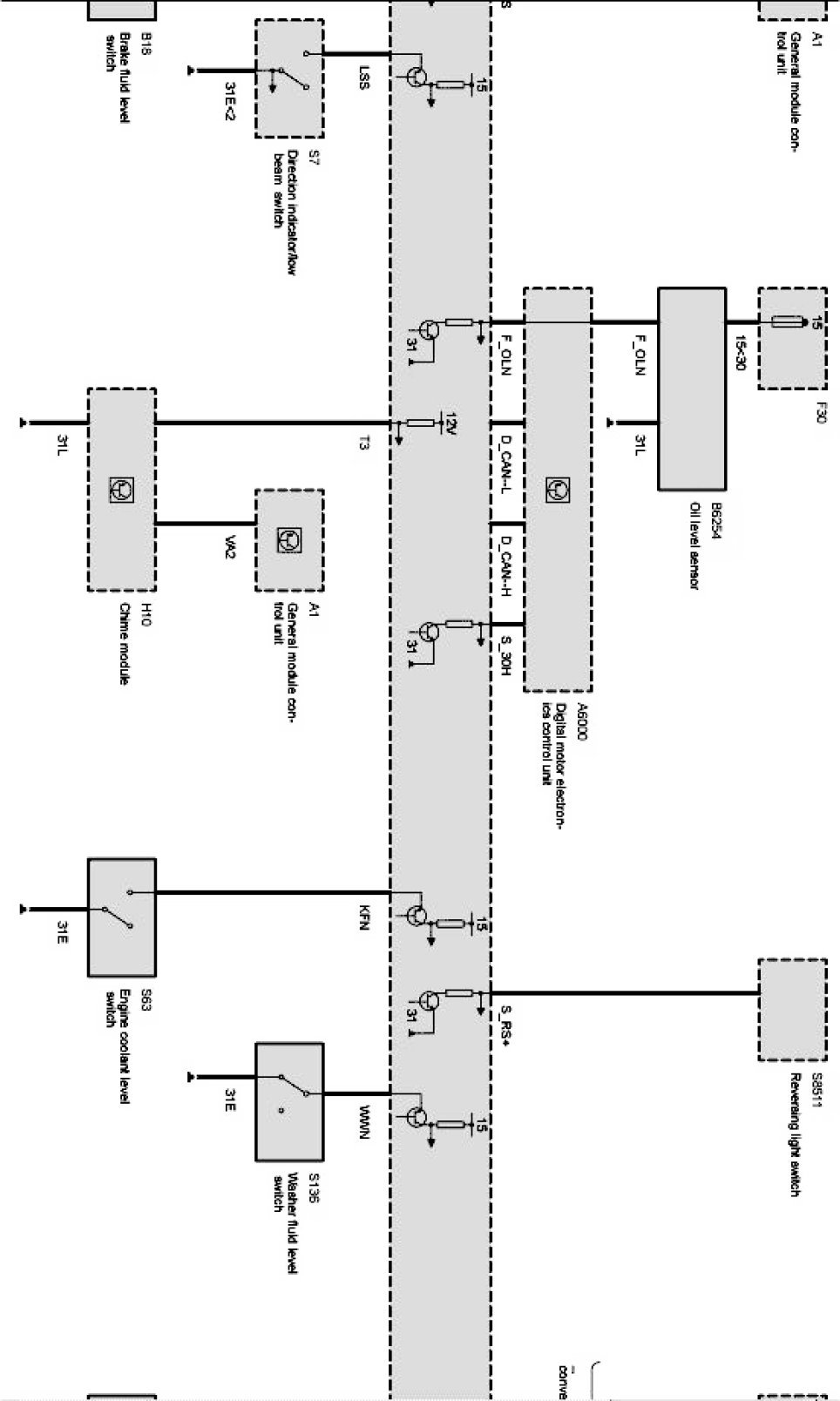

Display and Information Functions Part 1:

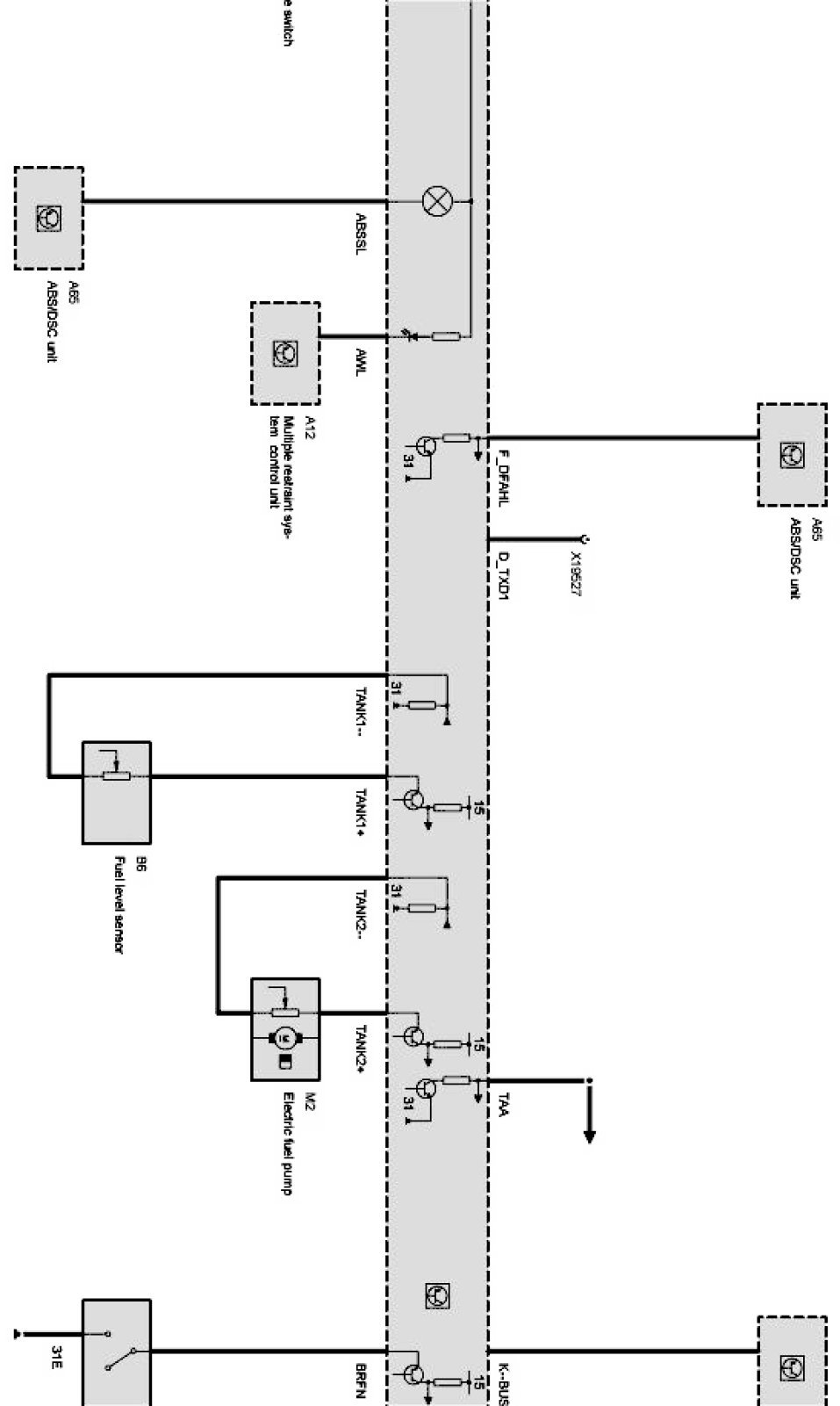

Display and Information Functions Part 2:

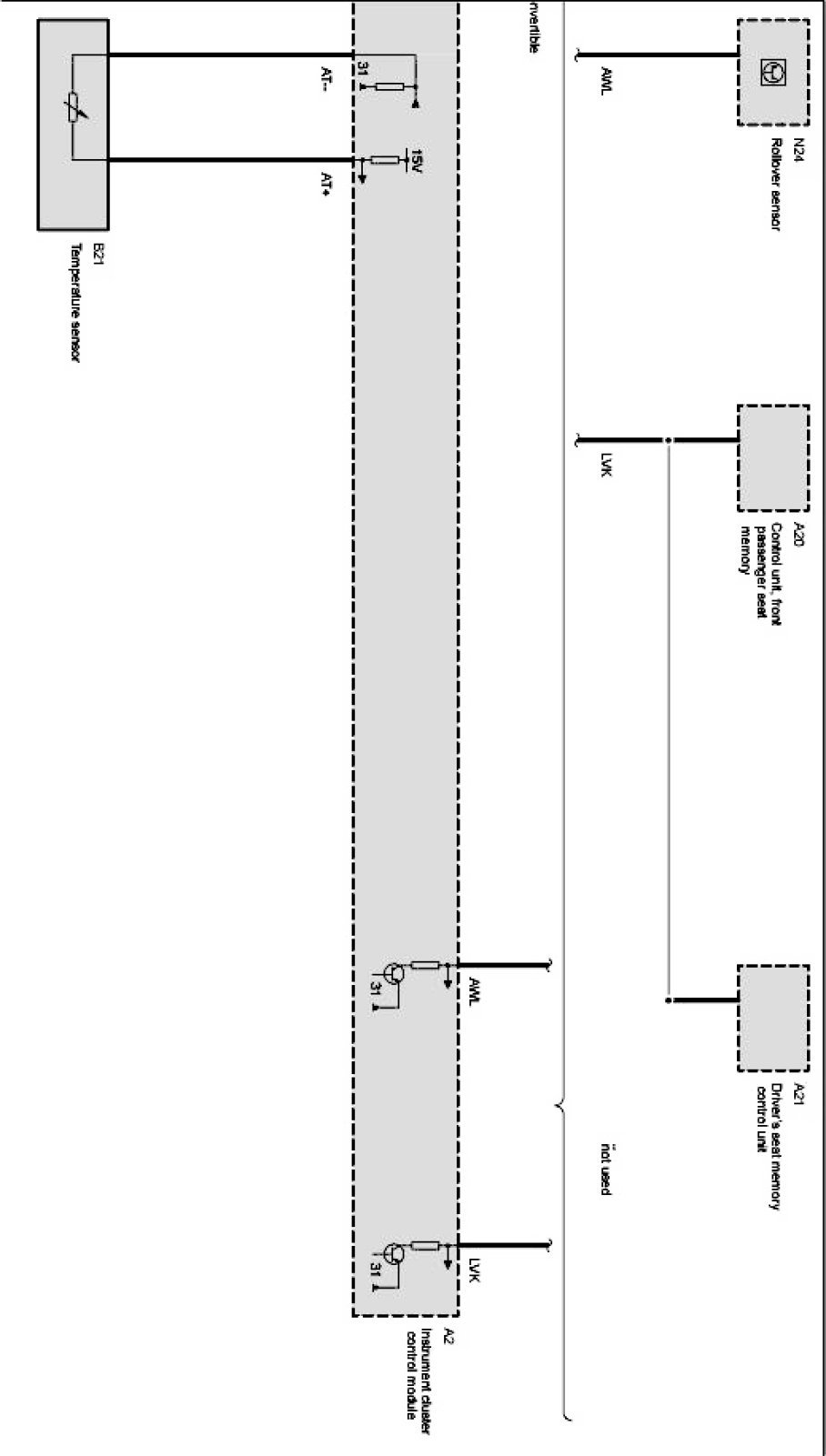

Display and Information Functions Part 3:

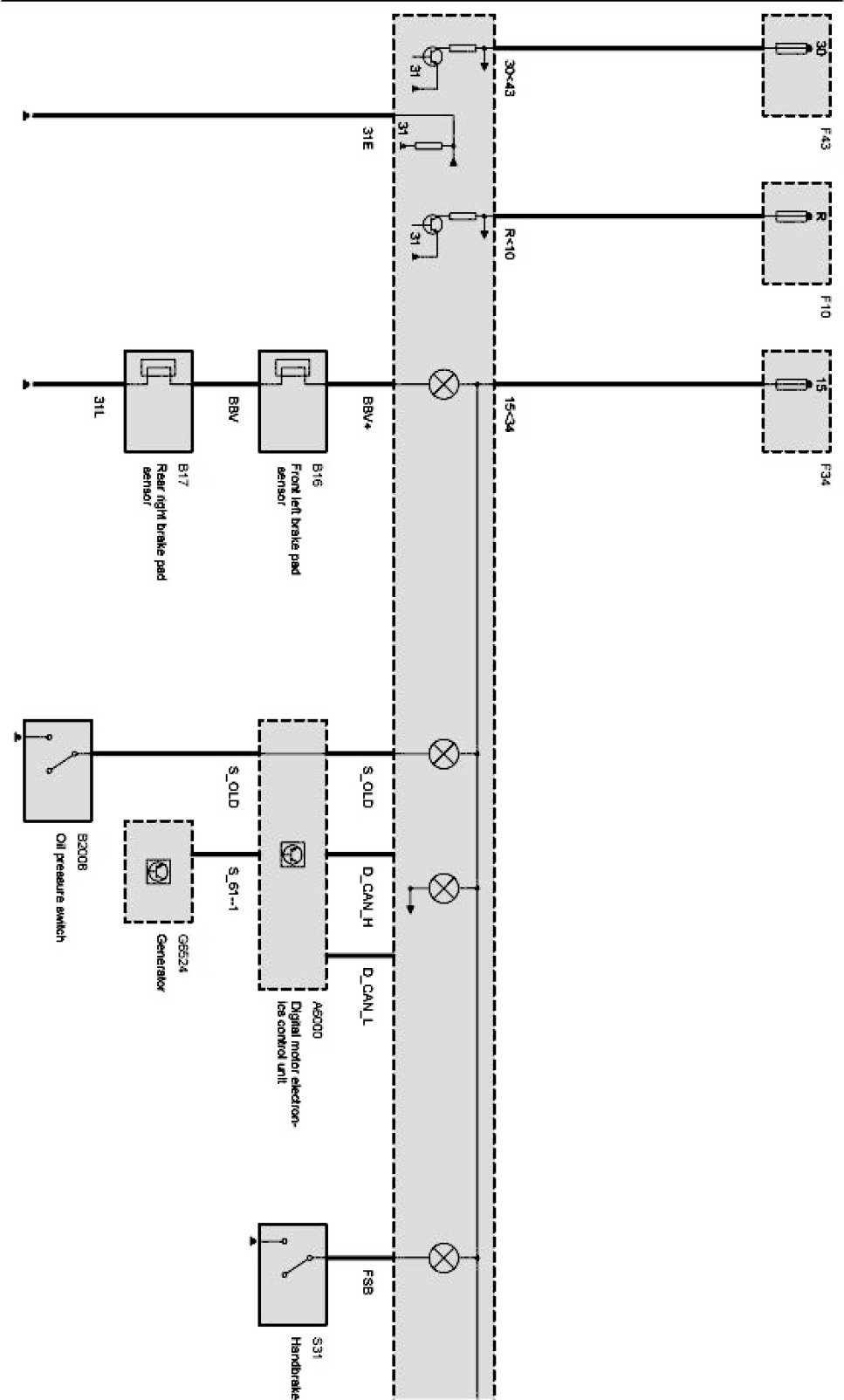

Display and Information Functions Part 4:
