Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Communication >> Telecommunication (TEL or BIT or TCU Telematic Control Unit or ULF Universal Charging and Hands-Free Facility) >> Cellular Telephone (As of 09/99 With SES Language-Input System With BIT Basis Interface Telephone)

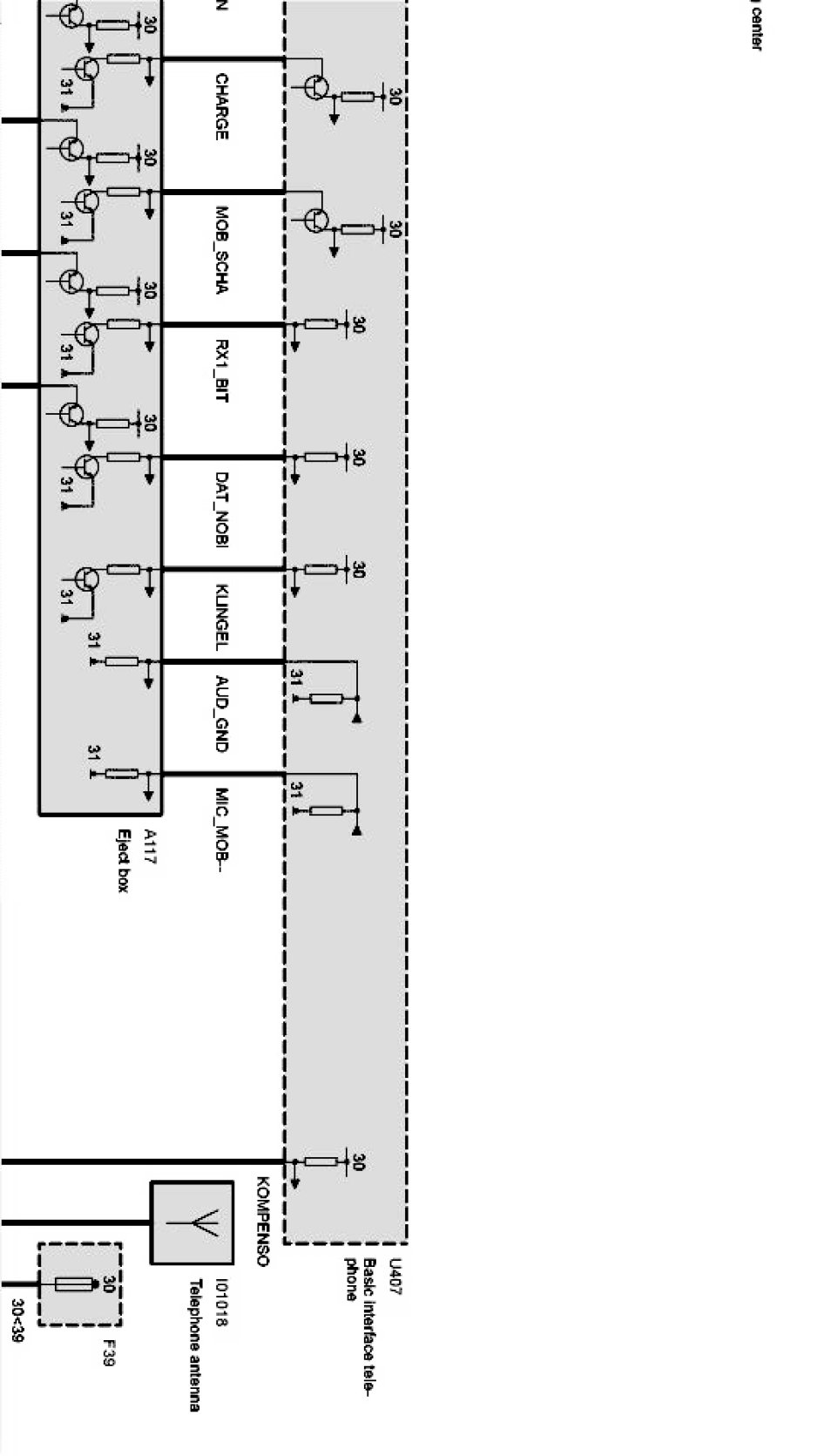

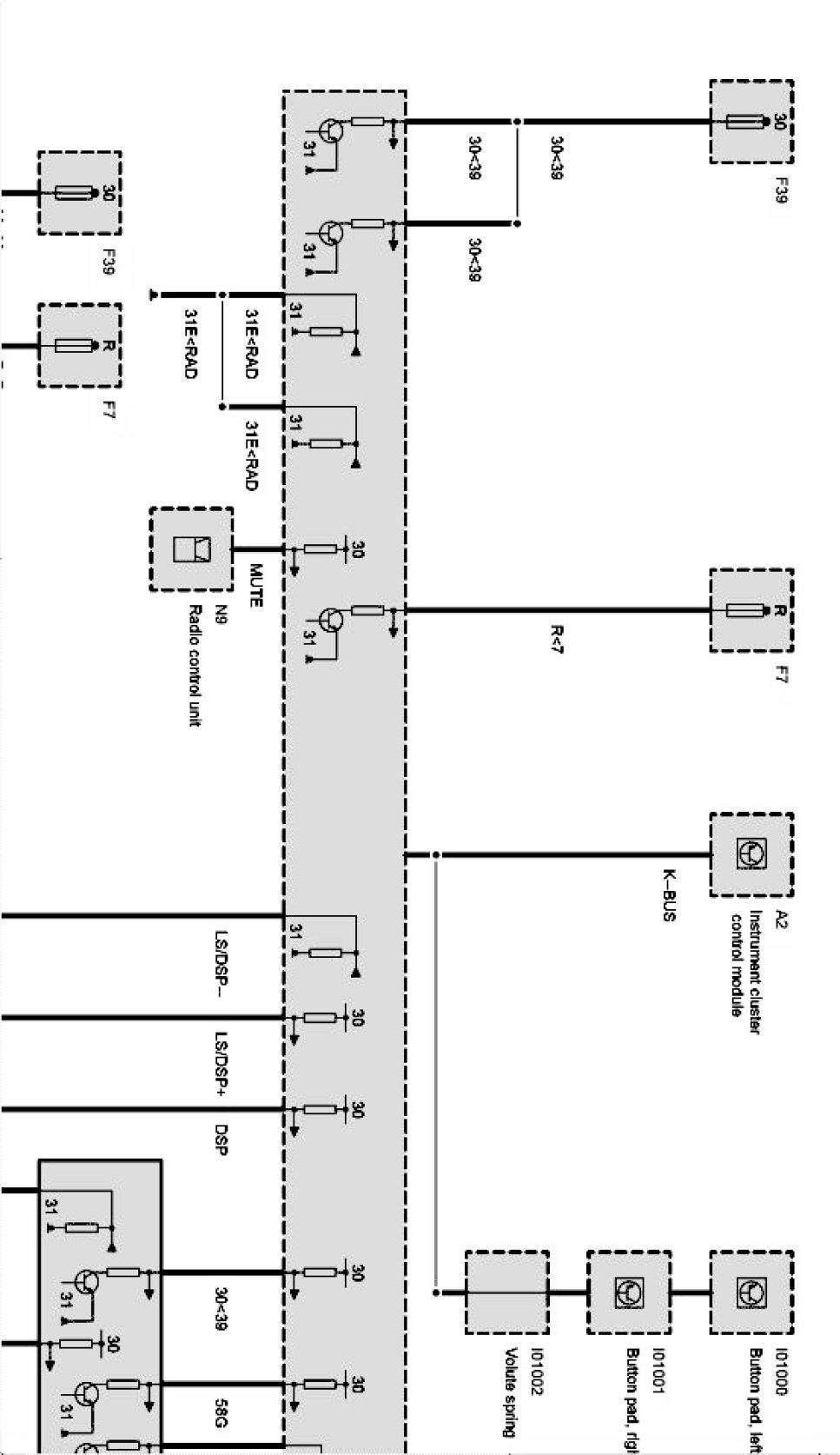

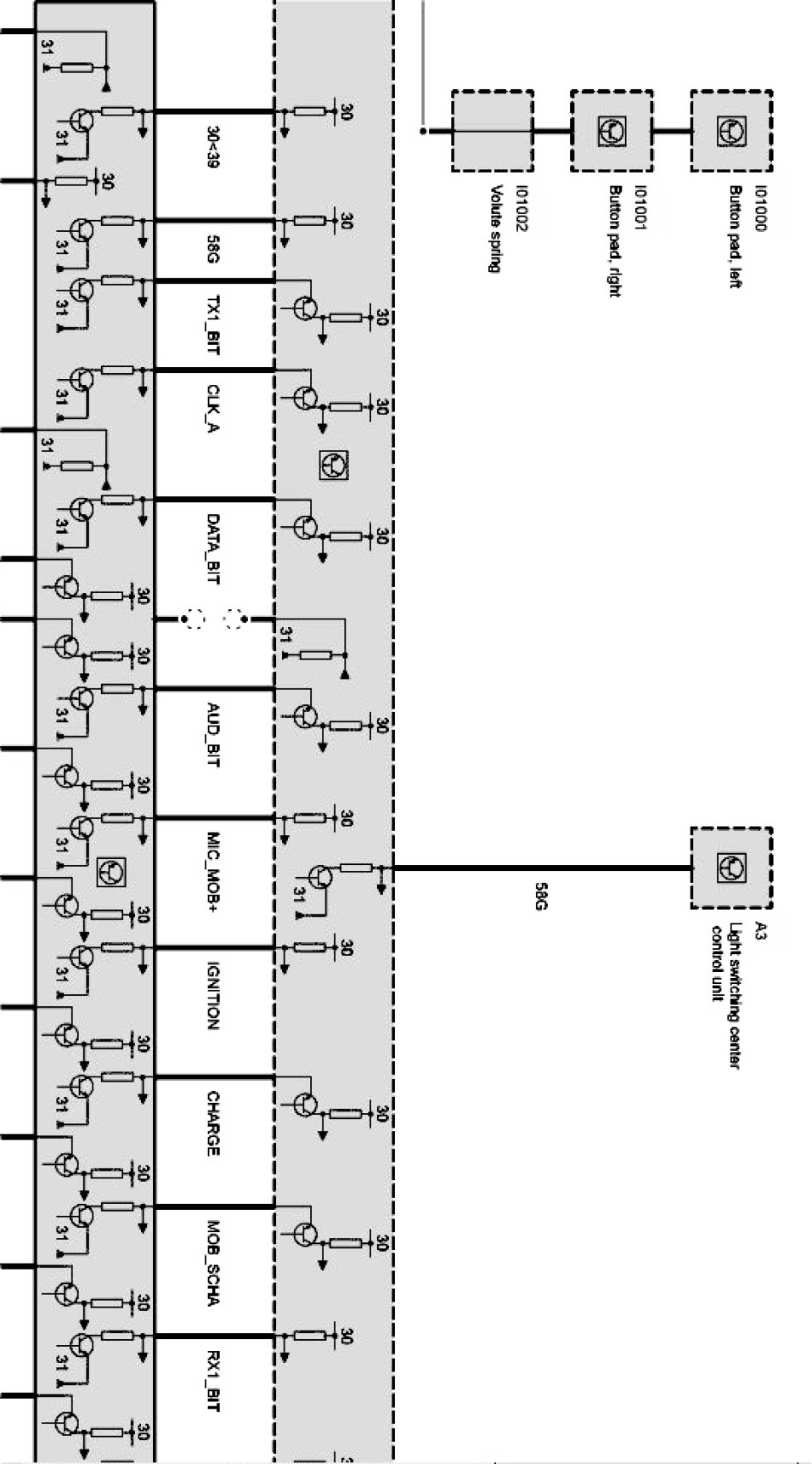

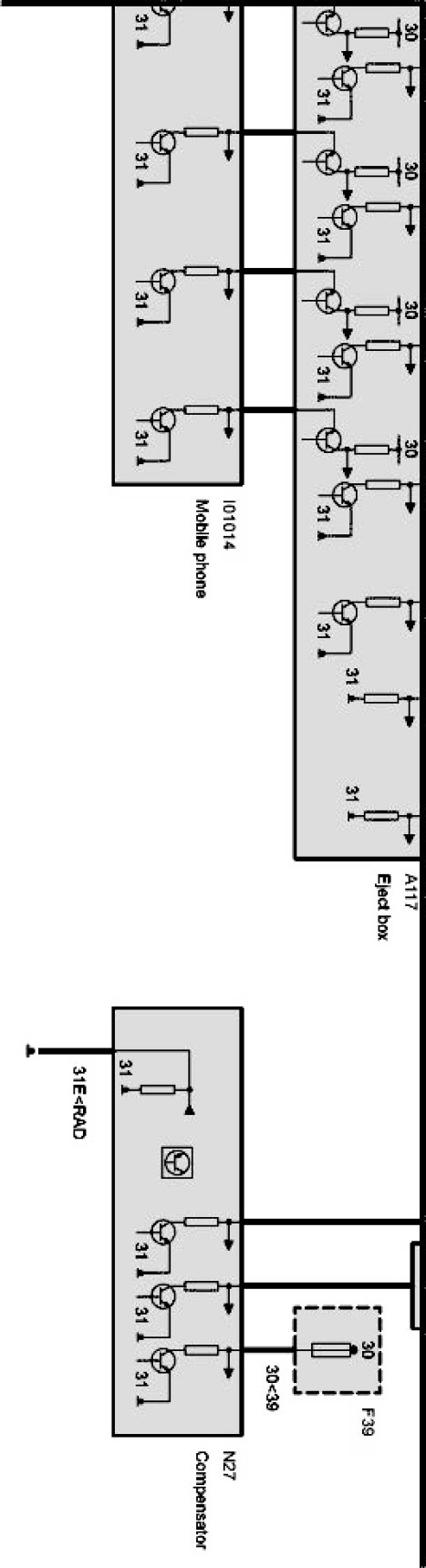

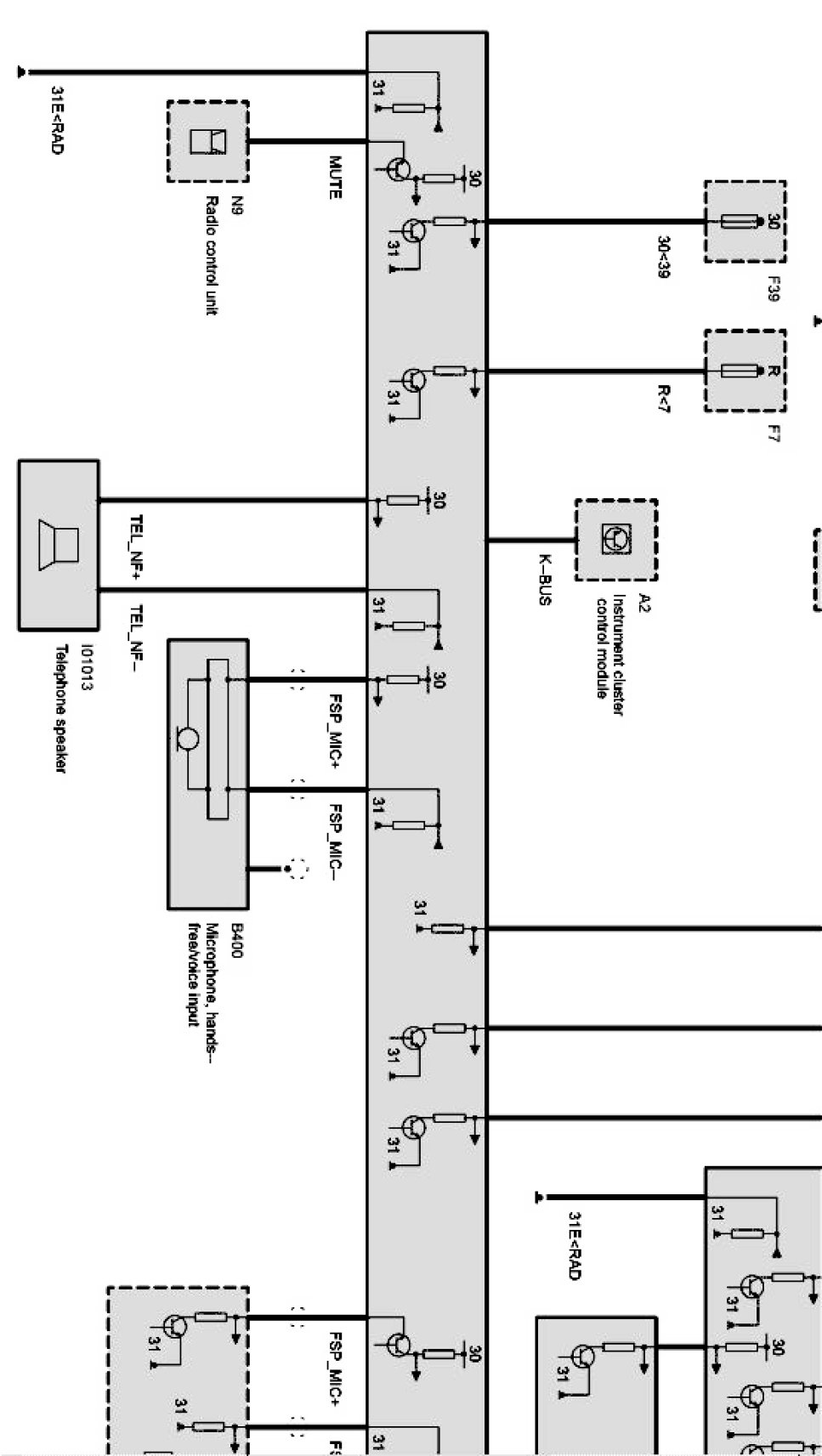

Cellular Telephone (As of 09/99 With SES Language-Input System With BIT Basis Interface Telephone)
