M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Radio
>>
Loudspeaker, Stereo (Stereo System (6 Speakers))
>>
Speaker, Rear Right
>>

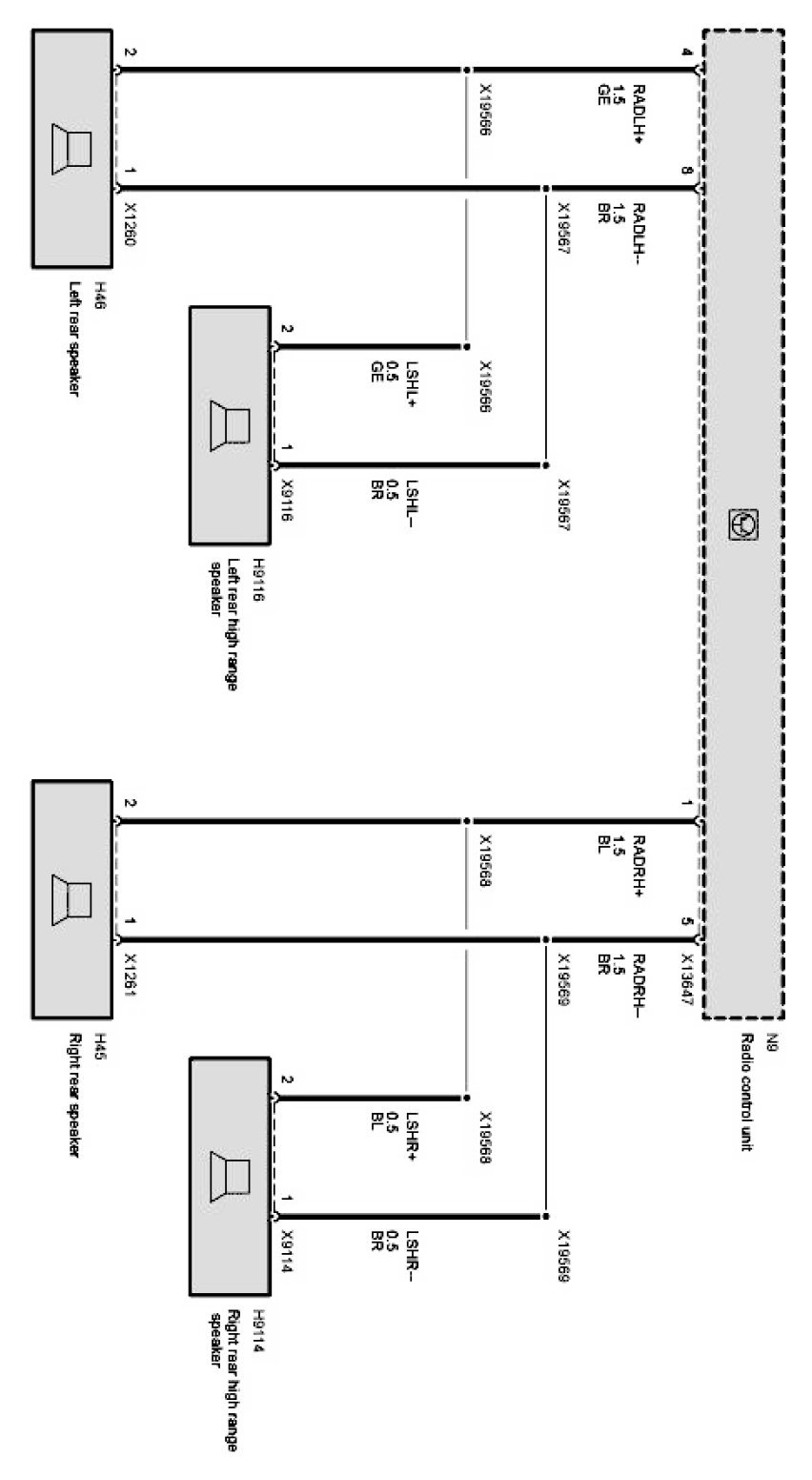

Rear Speaker (BM on-Board Monitor With Convertible As of 09/01)
Rear Speaker (BM on-Board Monitor With Convertible As of 09/01)
Rear speakers:
