Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors From X1 >> X11209 Plug, Hard-Top Mount, Right

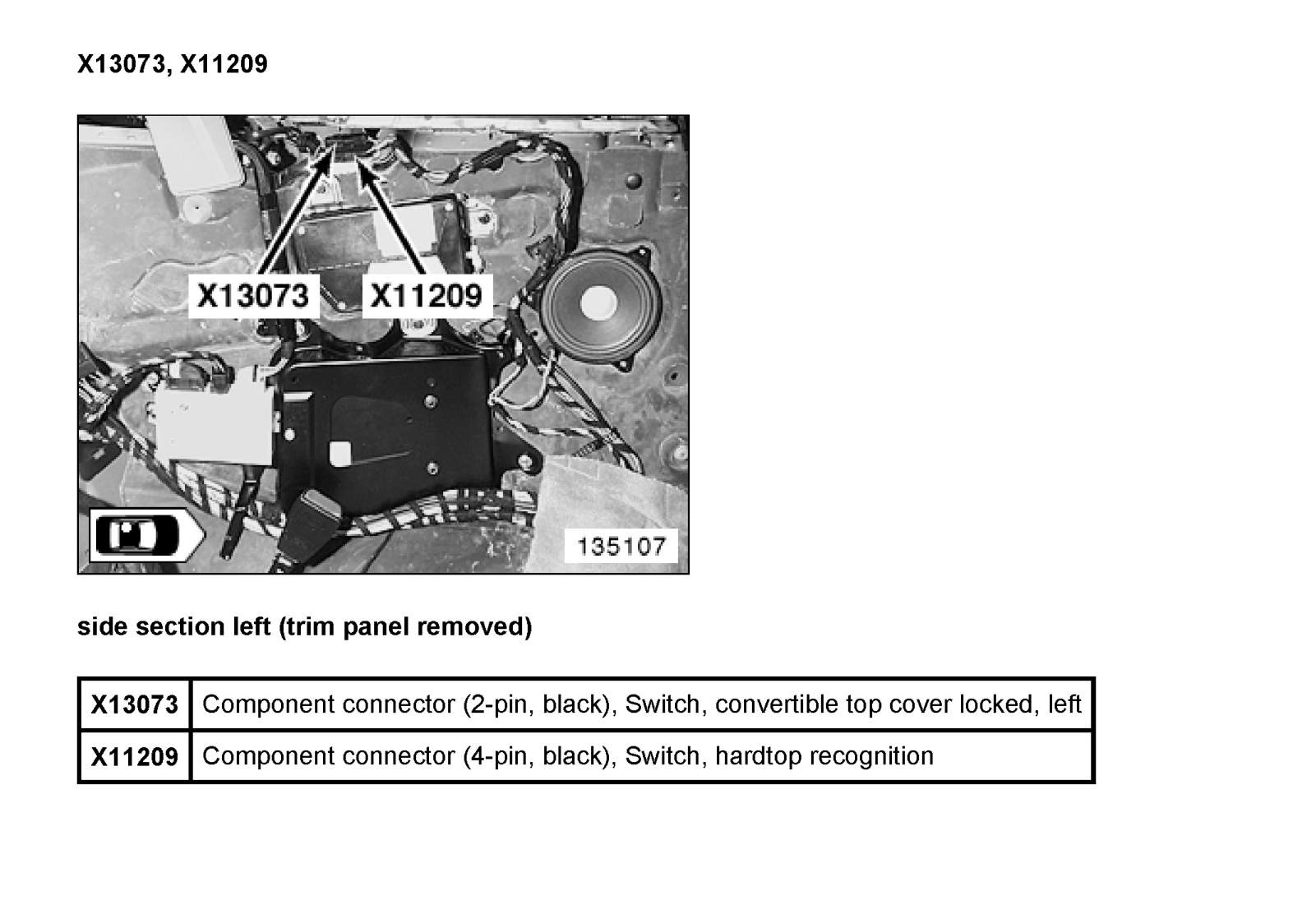

X11209 Plug, Hard-Top Mount, Right
