Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X9 >> X947 (S110 Sun shade switch)

X947 (S110 Sun shade switch)

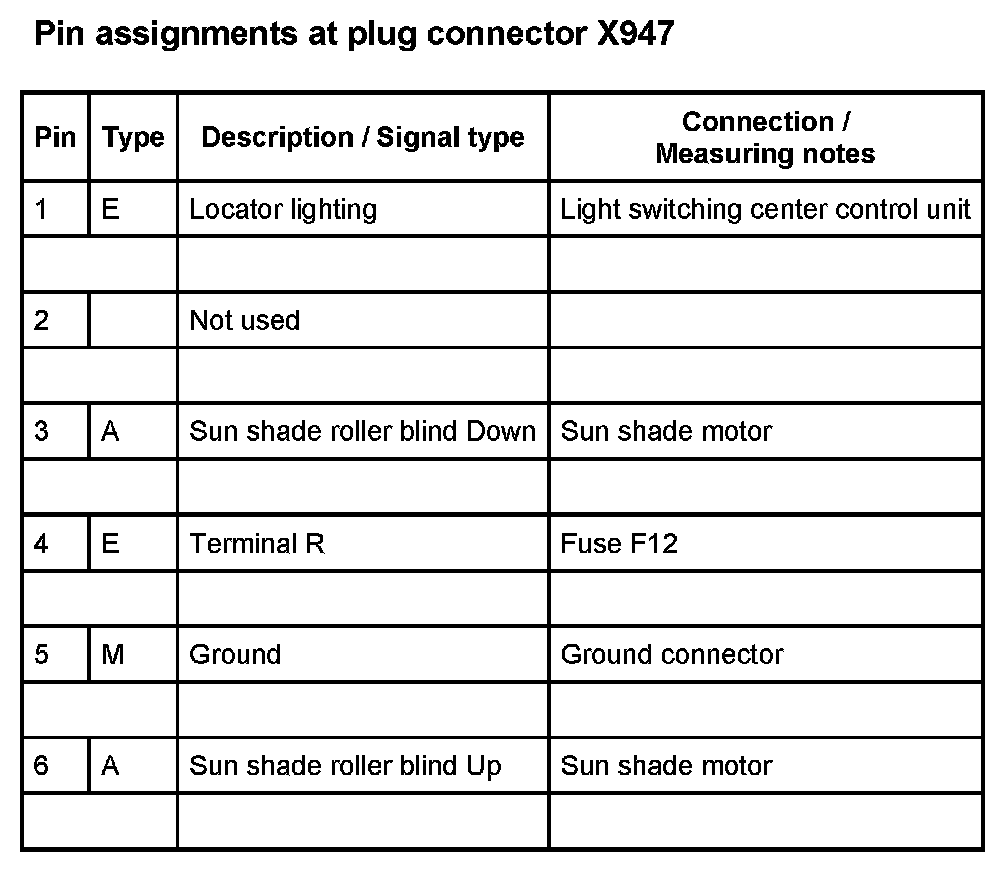

X947 Component Connector (6-Pin, Green):

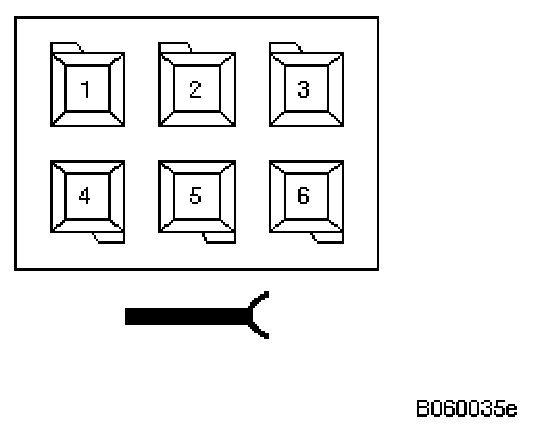

X947:
