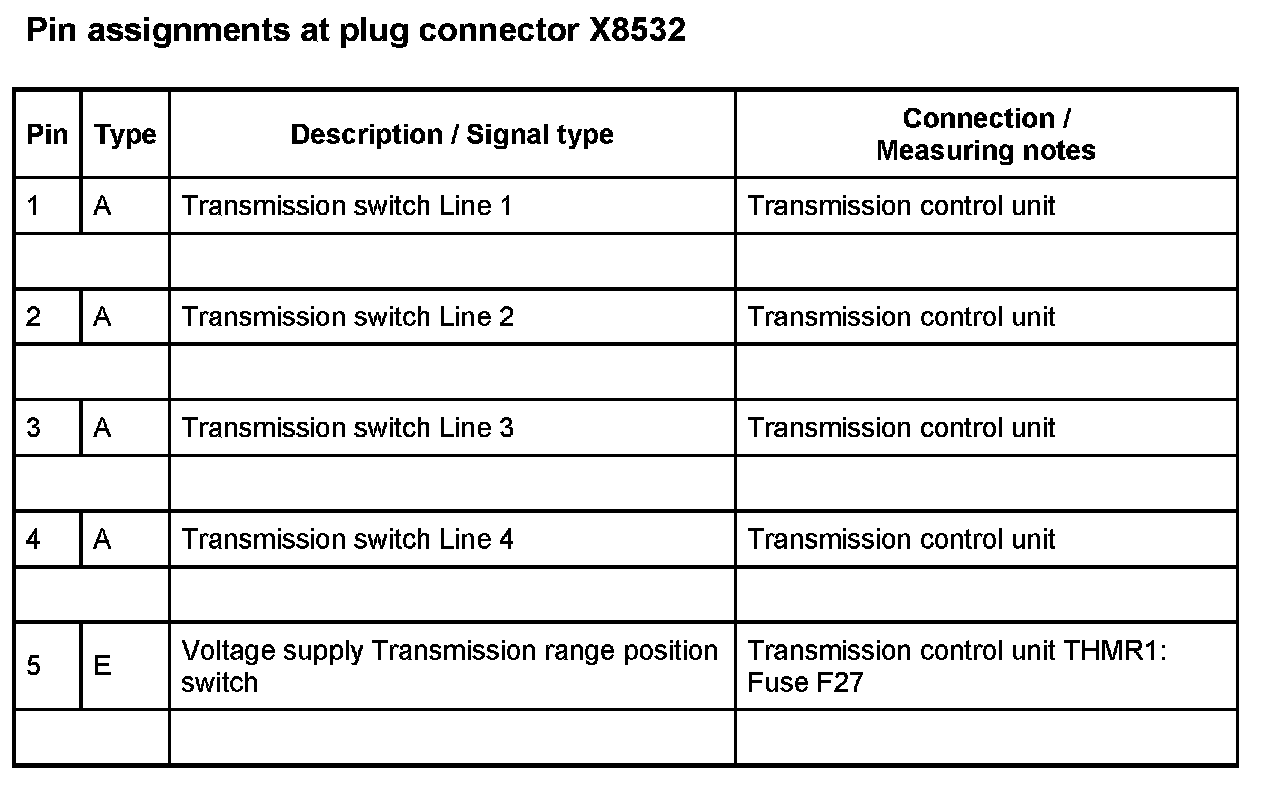

X8532 (S8532 Transmission range position switch)
X8532 (S8532 Transmission range position switch)
X8532:
