A12 Multiple Restraint System Control Unit (MRS Multiple Restraint System III/IV As of 09/99)

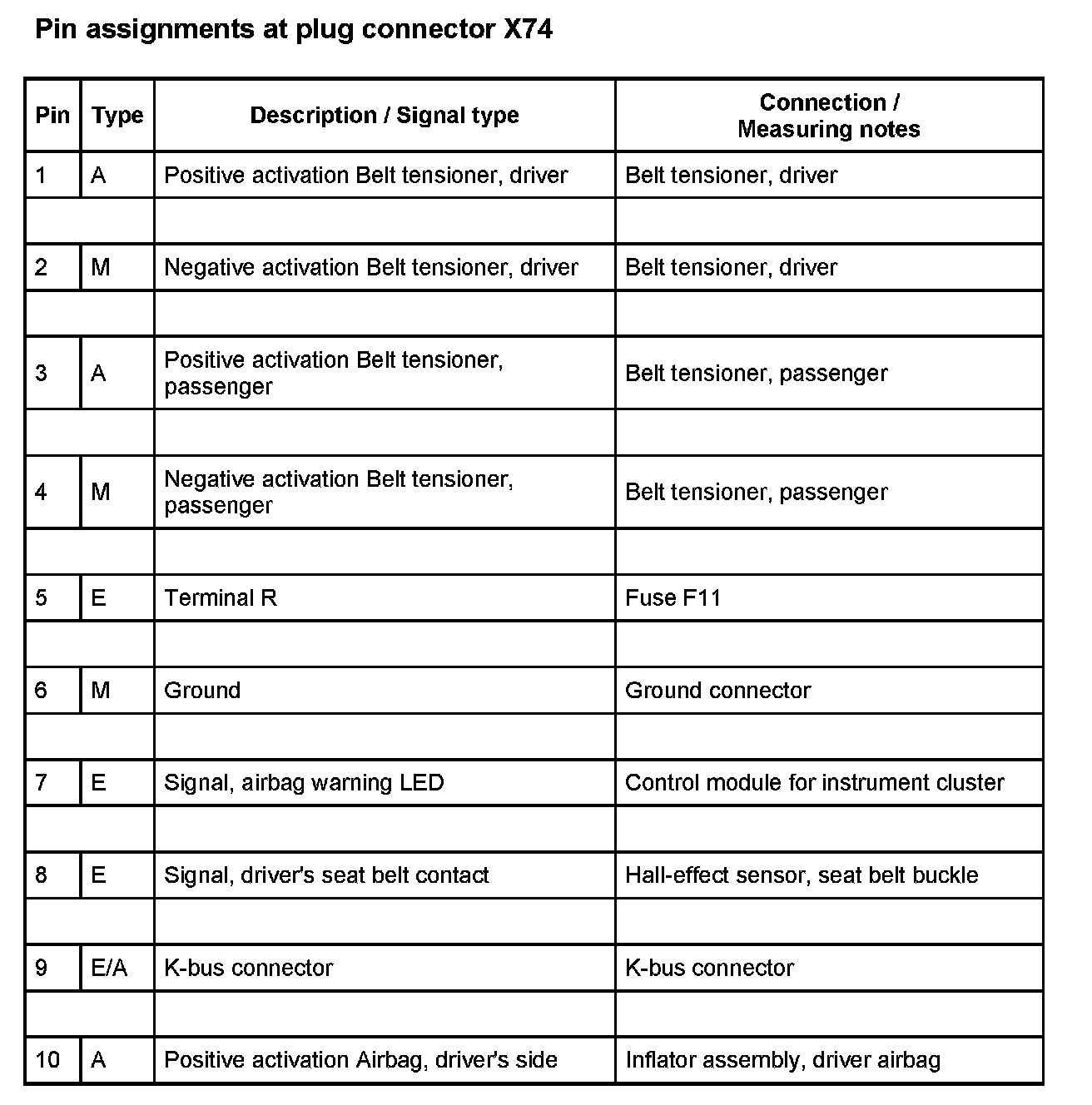

X74 - Part 1:

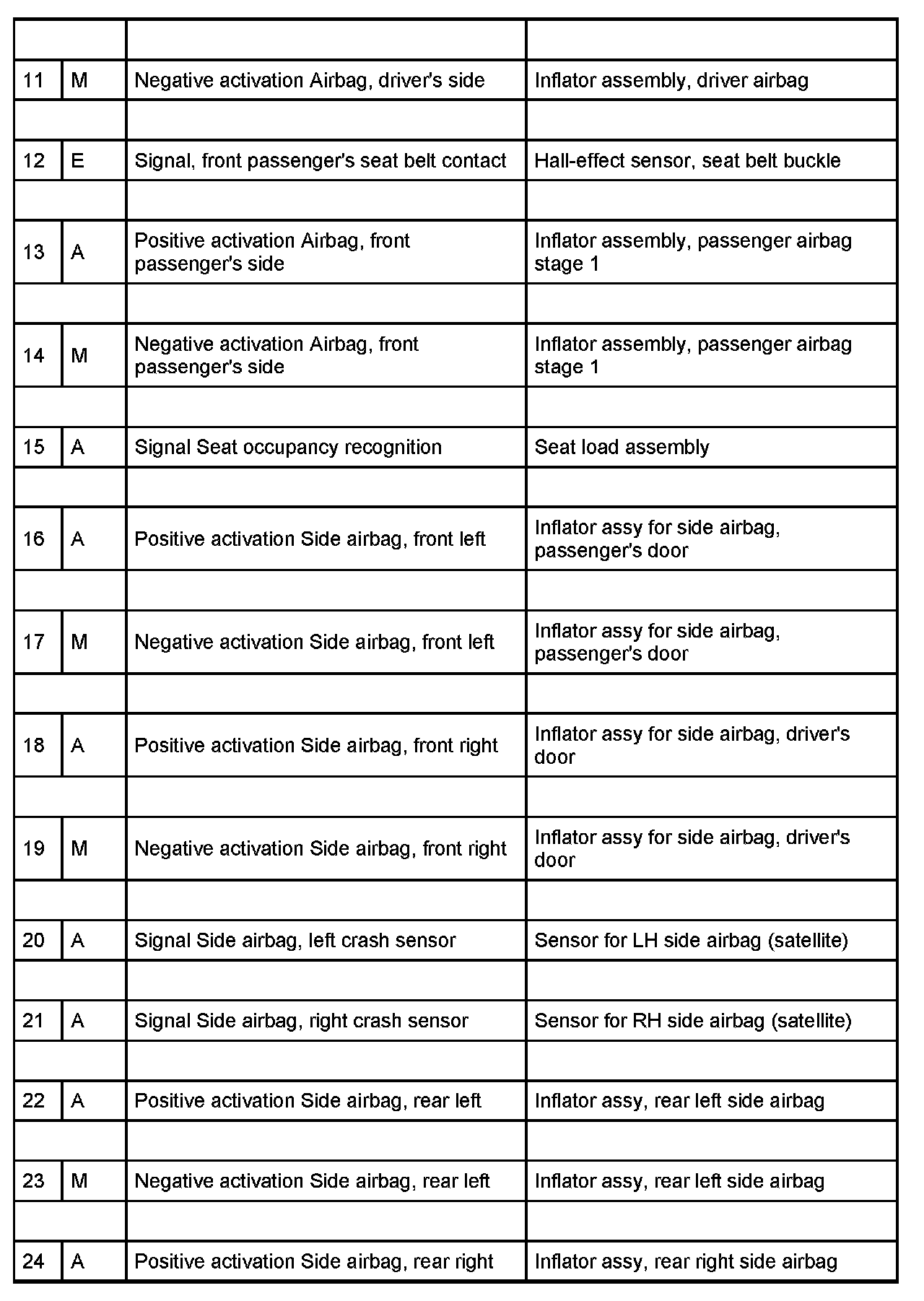

X74 - Part 2:

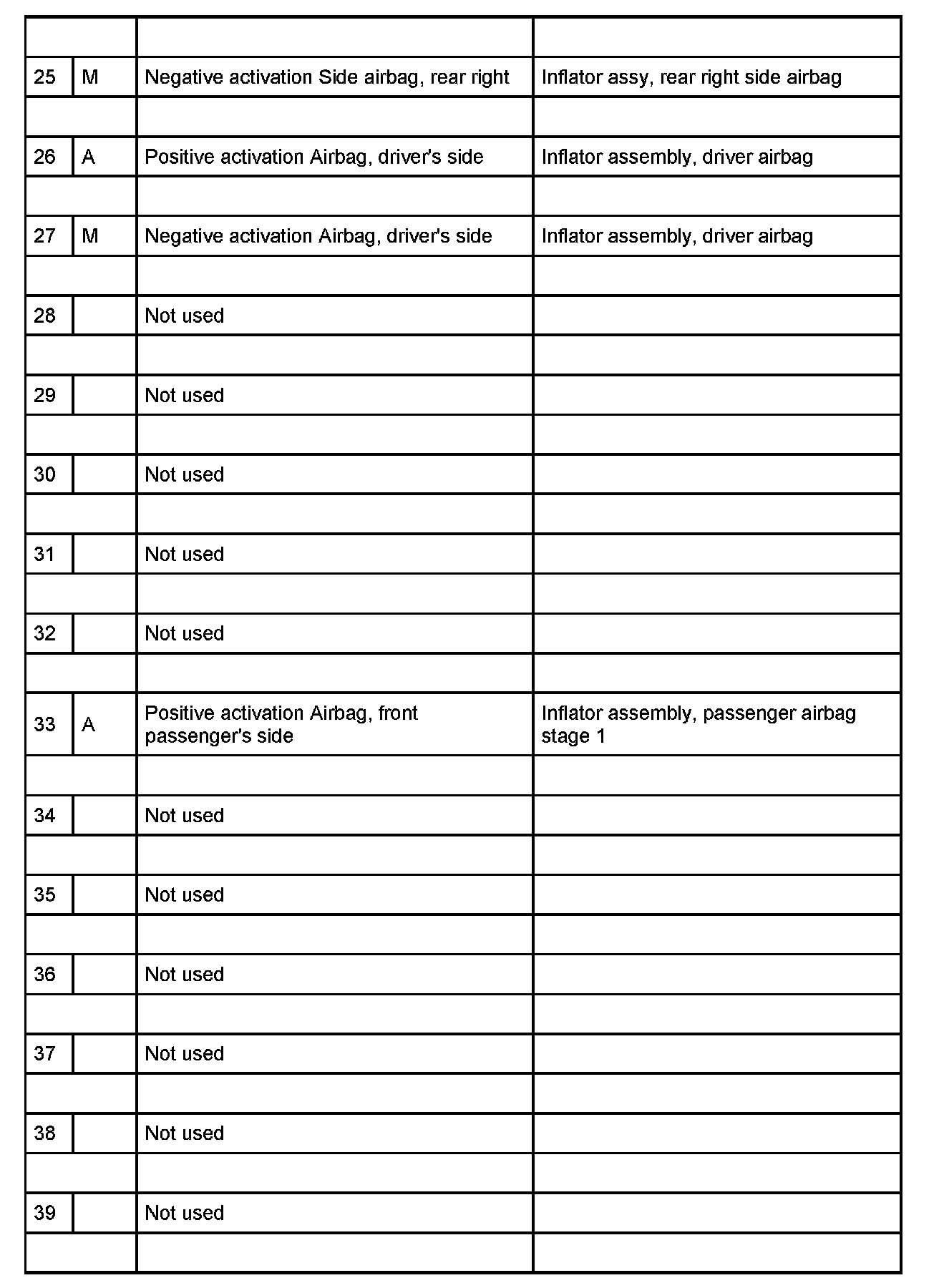

X74 - Part 3:

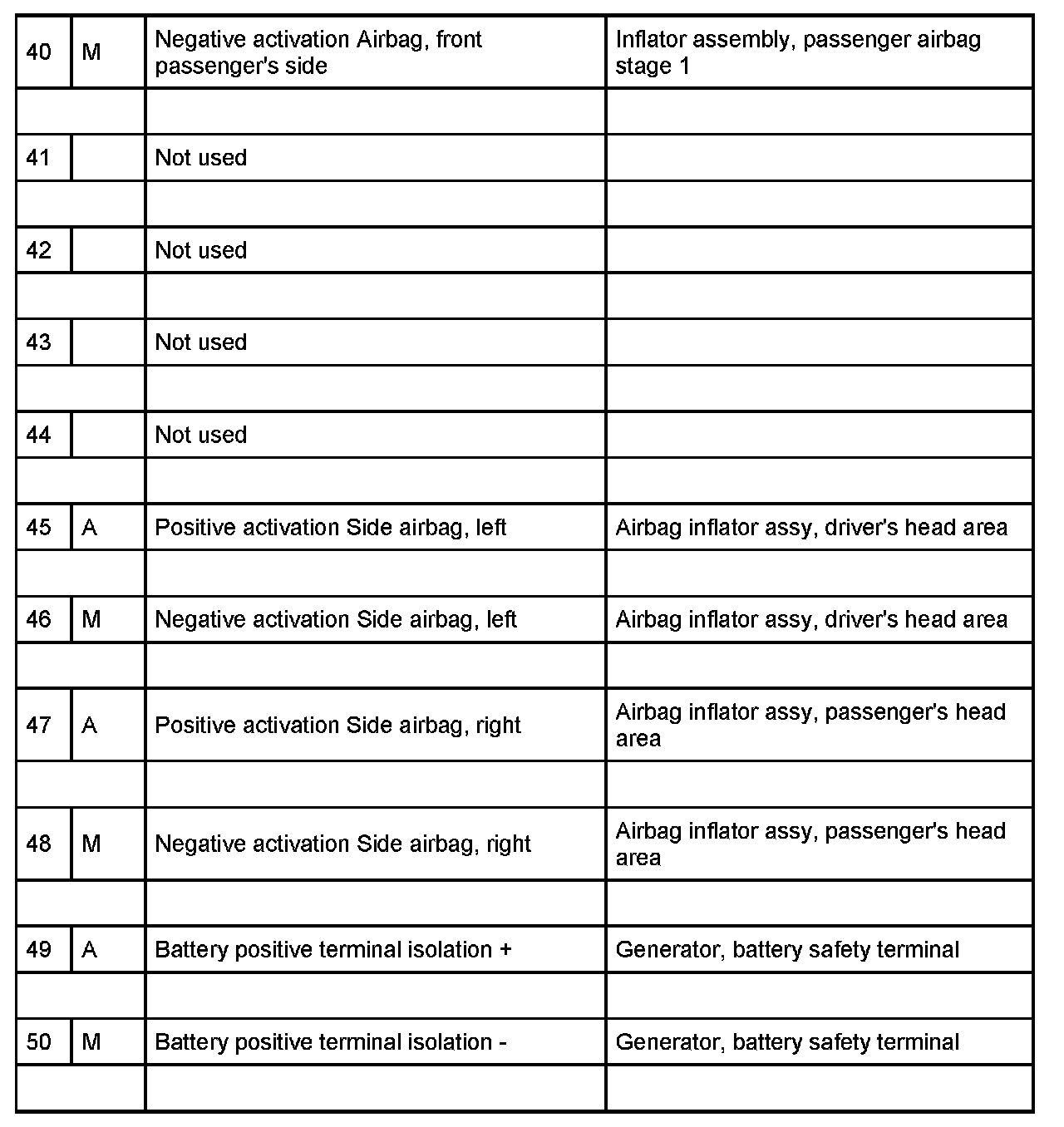

X74 - Part 4:
