FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2006
>>
M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X6
>>
X650
>>
A21 Driver's Seat Memory Control Unit (As of 03/00 With Contvertible)
A21 Driver's Seat Memory Control Unit (As of 03/00 With Contvertible)

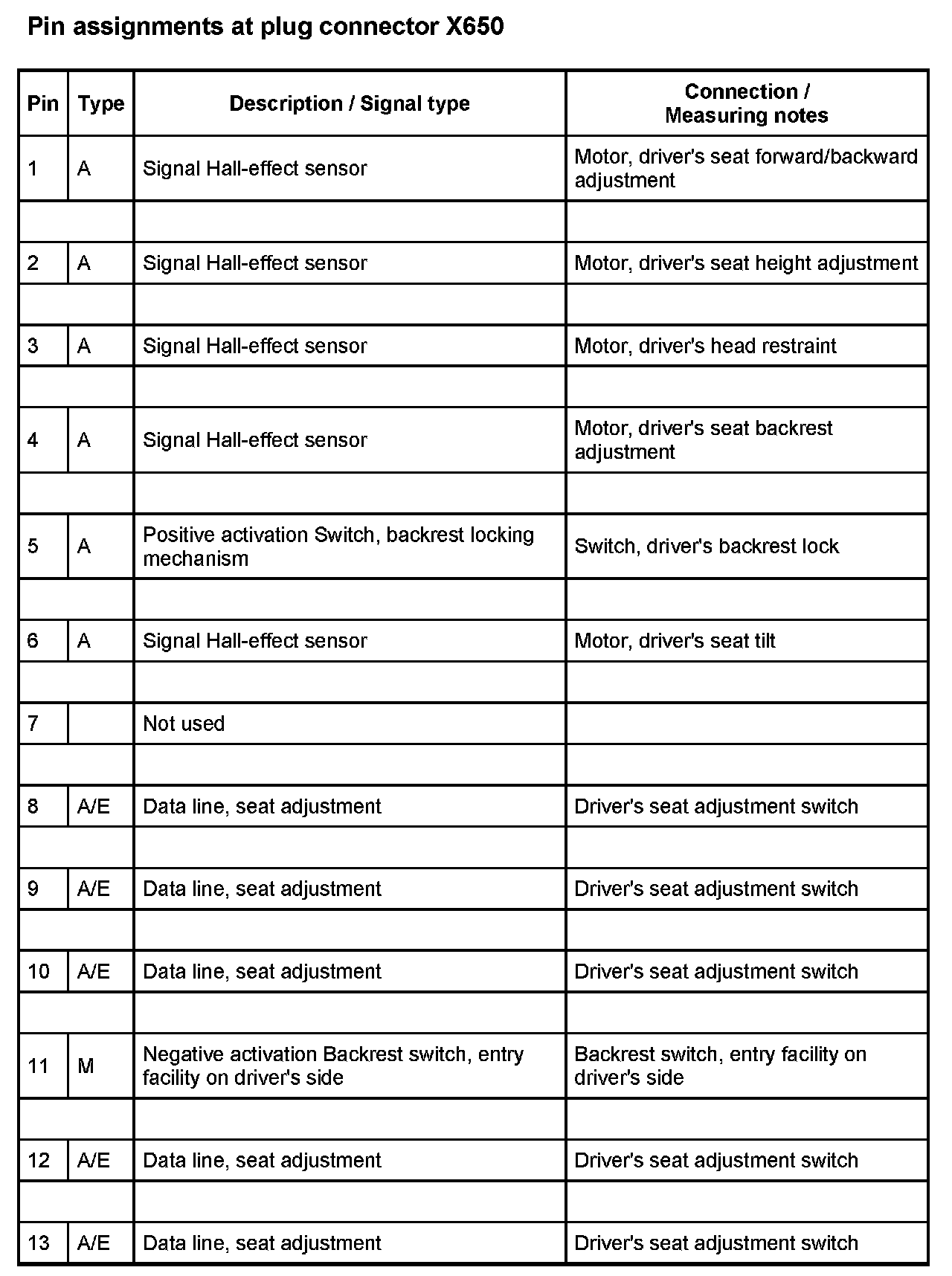

X650 - Part 1:

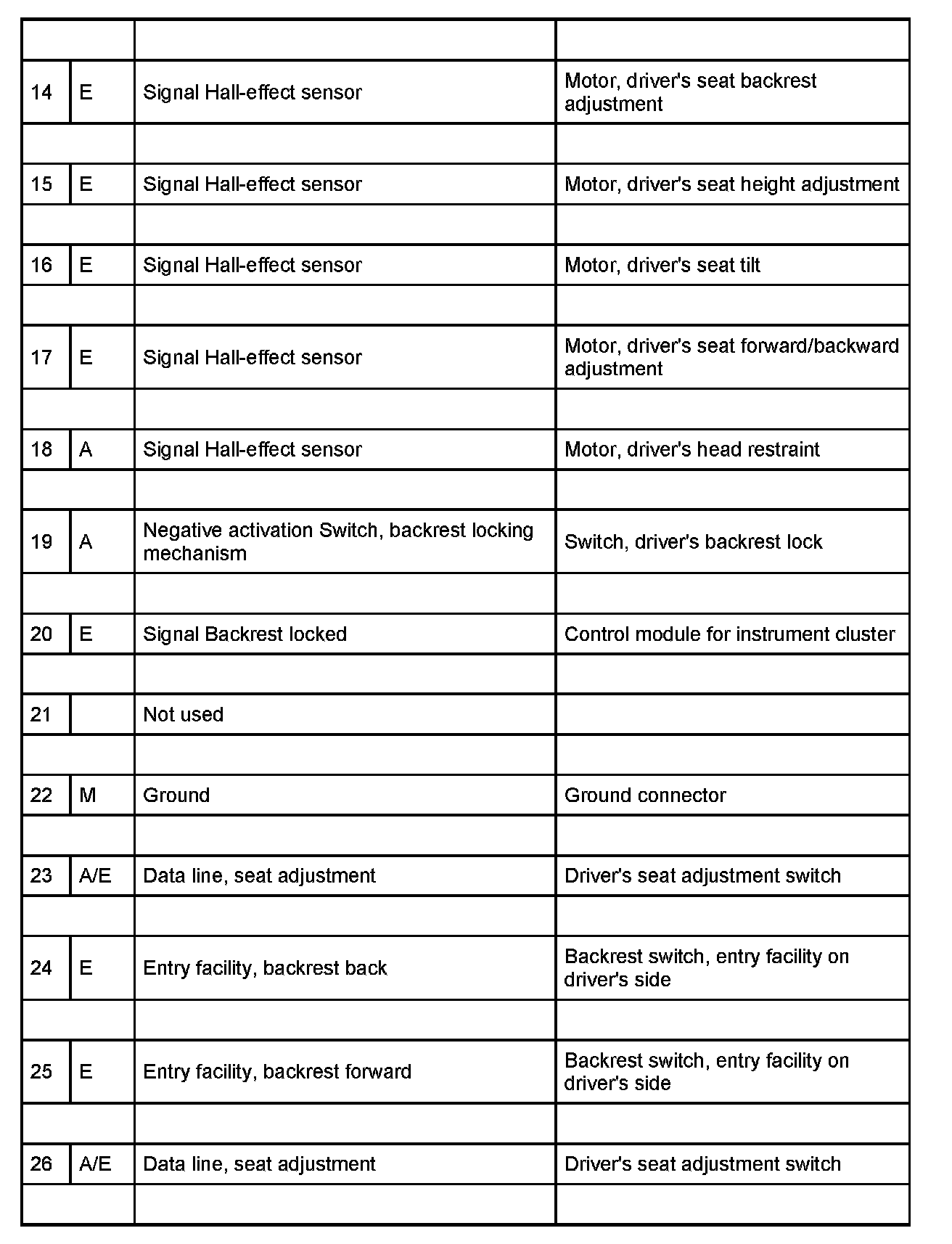

X650 - Part 2:
