X60005
>>
A6000 Digital Motor Electronics Control Unit (W/O Smg Sequential M Transmission As of 09/01)
A6000 Digital Motor Electronics Control Unit (W/O Smg Sequential M Transmission As of 09/01)

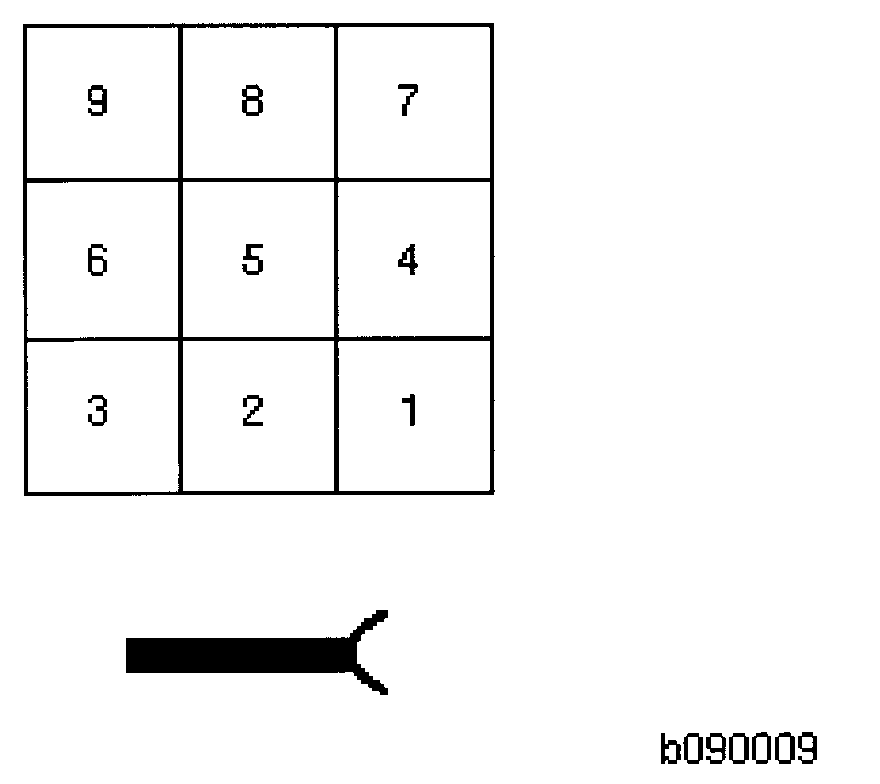

9-pin, black:

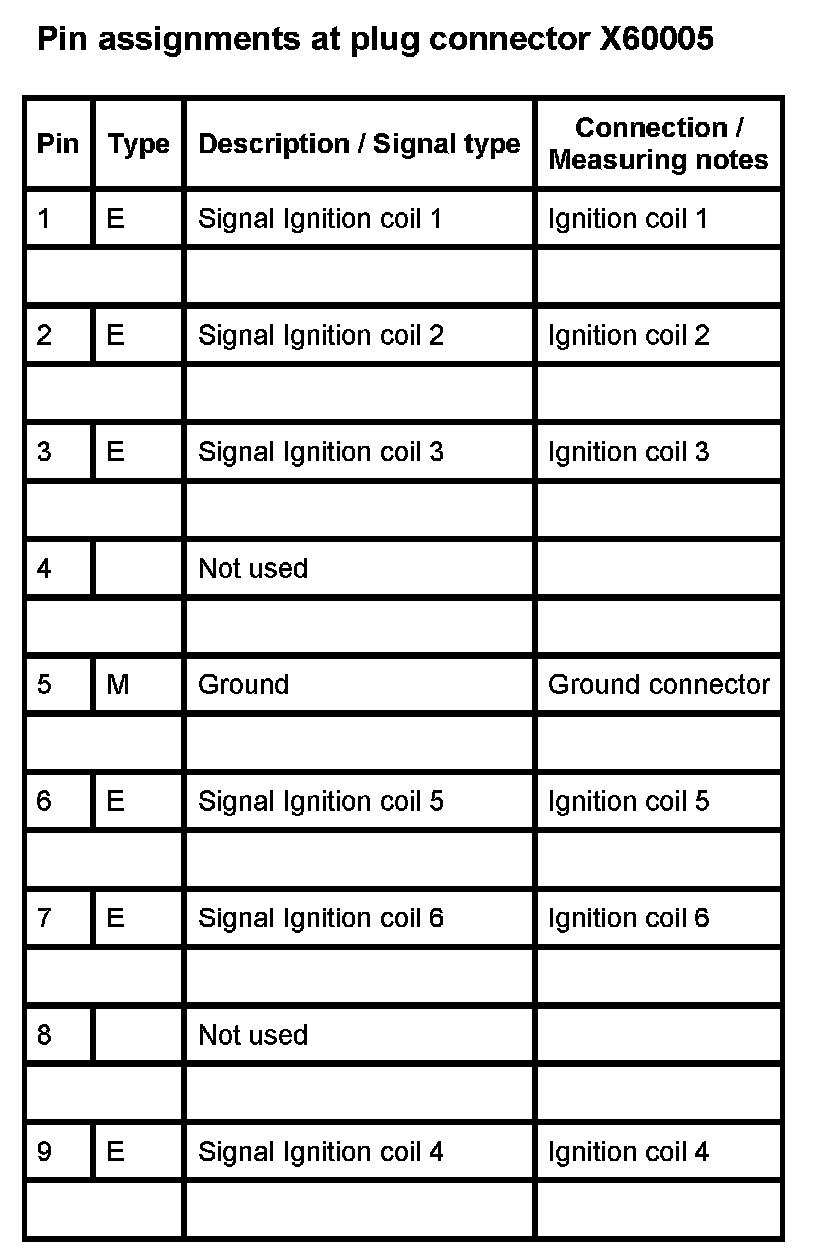

X60005:
