X51 (K19 Relay, A/C compressor)
X51 (K19 Relay, A/C compressor)

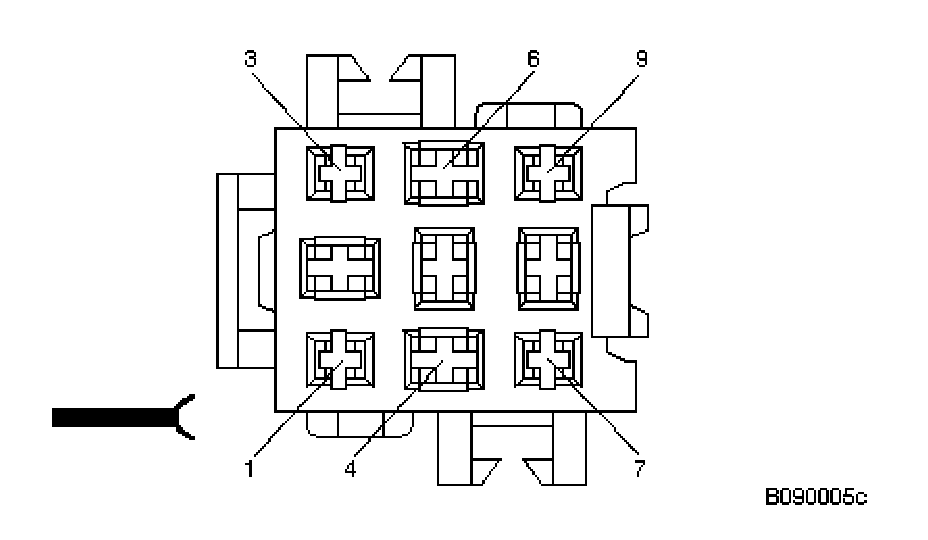

X51 Component Connector (9-Pin, Black):

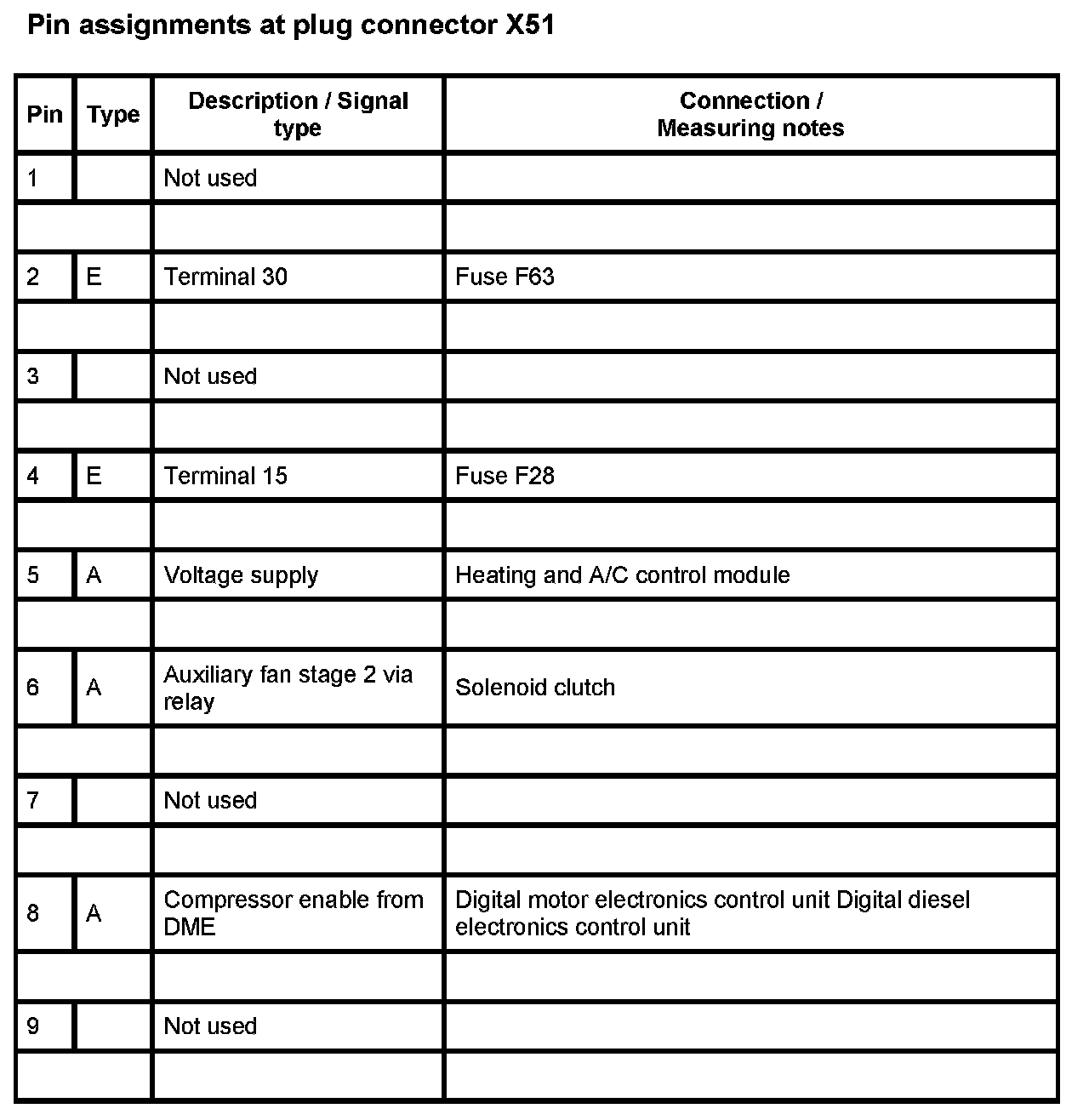

X51:
