X3613 (A417 Control module, tire failure indicator (RPA) AWD as of 09/01)
X3613 (A417 Control module, tire failure indicator (RPA) AWD as of 09/01)

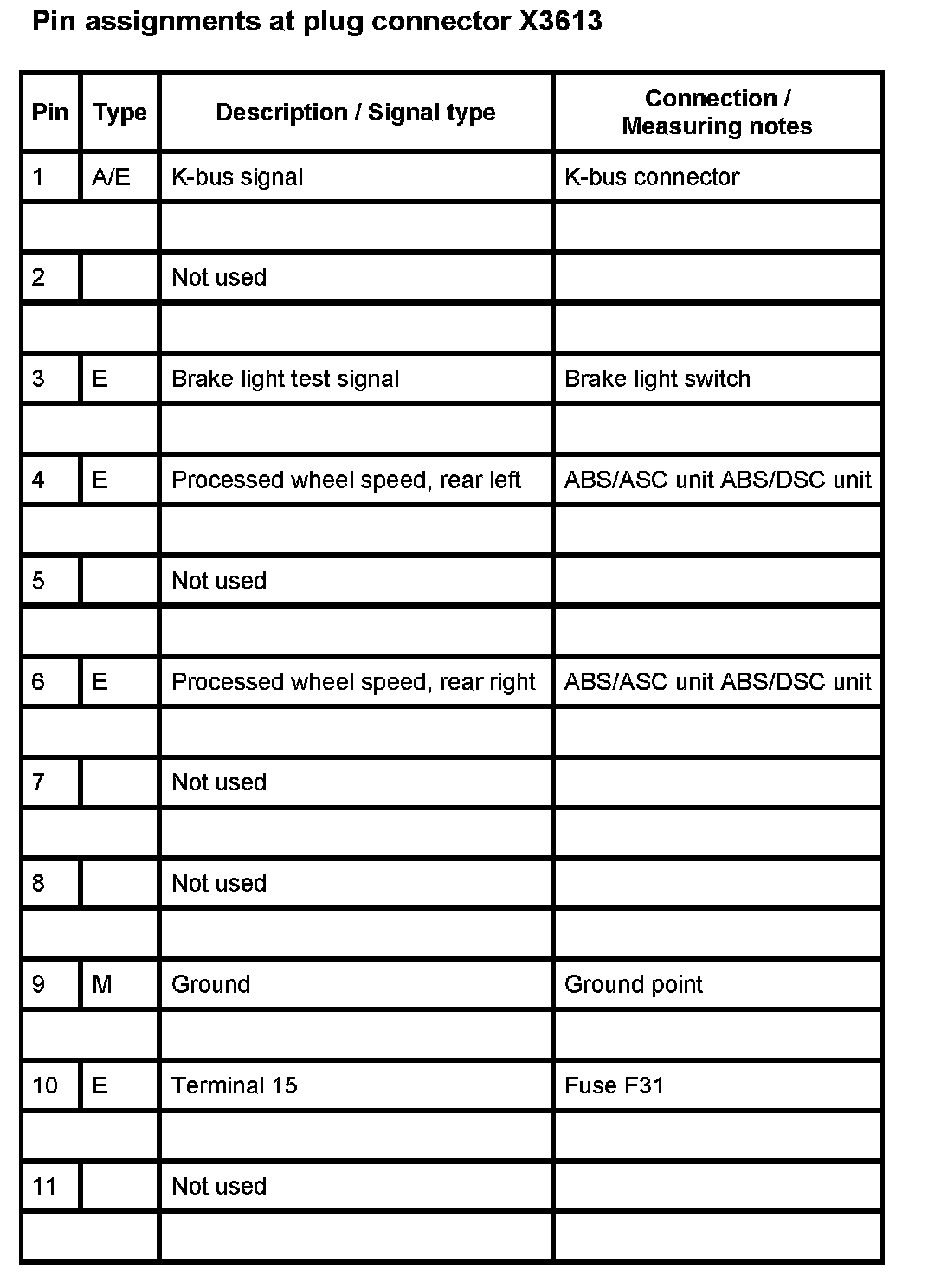

X3613 - Part 1:

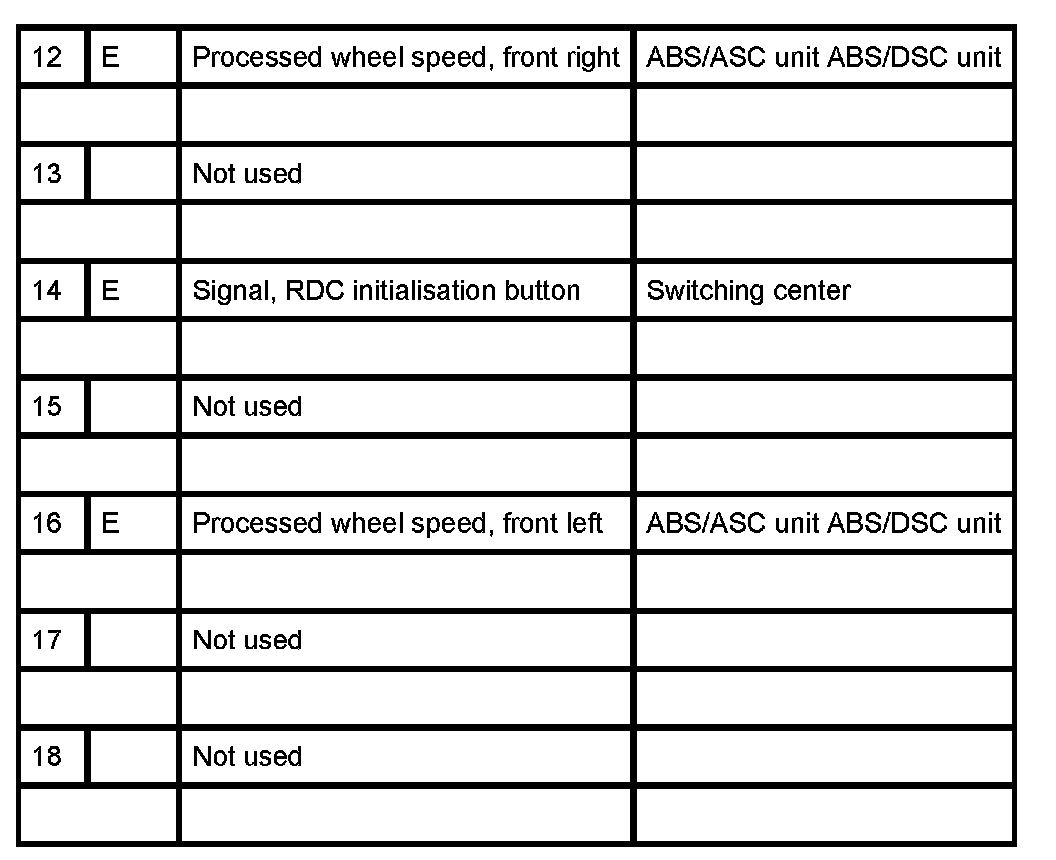

X3613 - Part 2:
