X318
>>
E47 Tail Light, Right ((Coupe or Convertible) As of 03/03)
E47 Tail Light, Right ((Coupe or Convertible) As of 03/03)

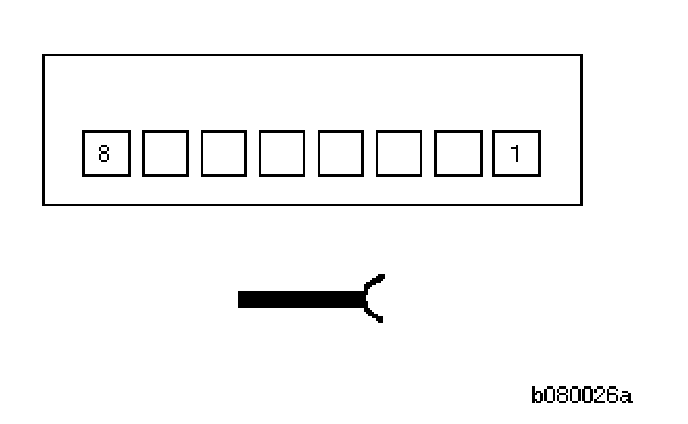

X318 Component Connector (8-Pin, Black):

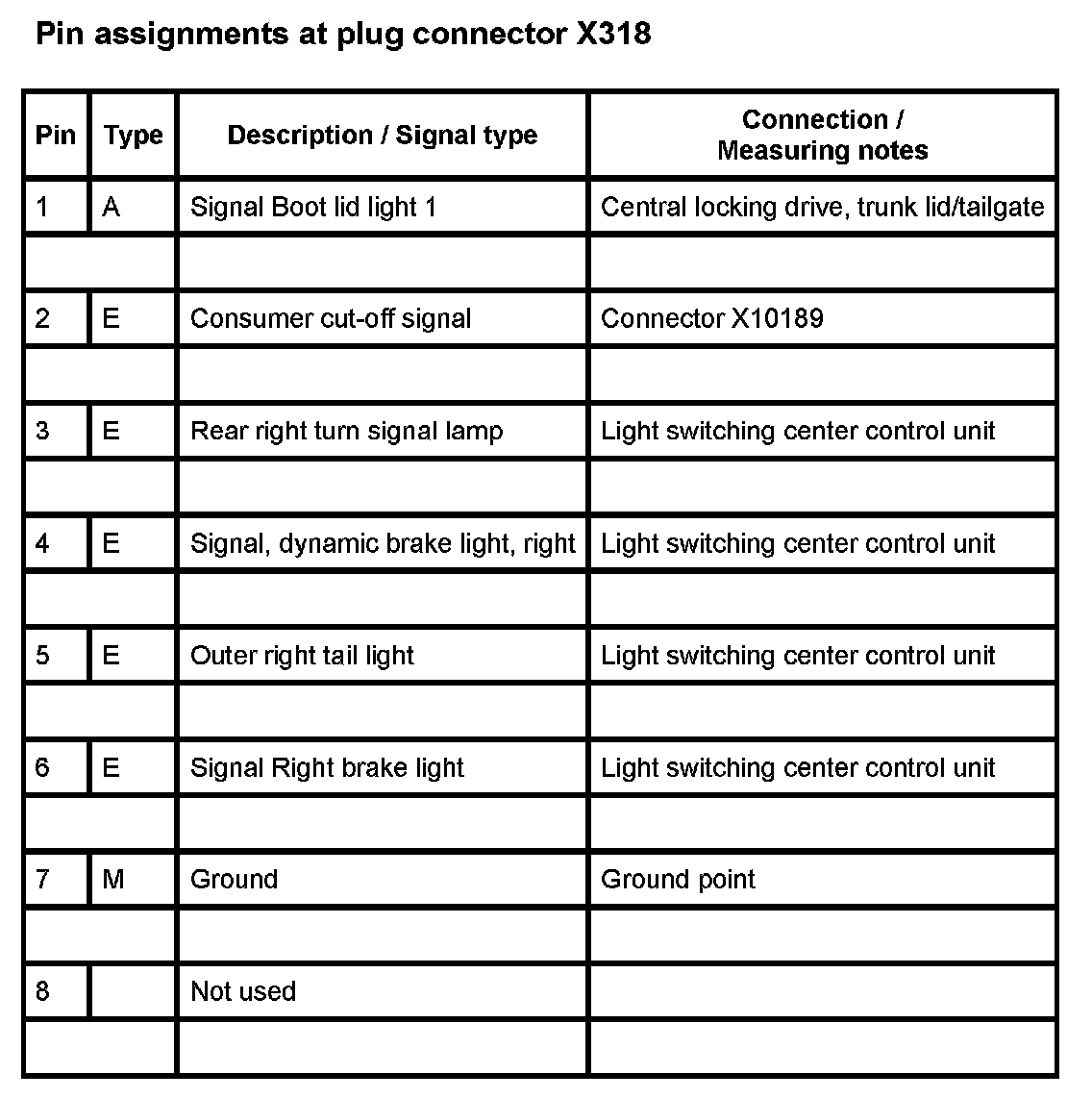

X318:
