M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X18303 Adapter 345240/-50, Storage Location M204/-N205
>>
A65 ABS/DSC Unit (DSC Dynamic Stability Control MK60 From 09/01)
A65 ABS/DSC Unit (DSC Dynamic Stability Control MK60 From 09/01)

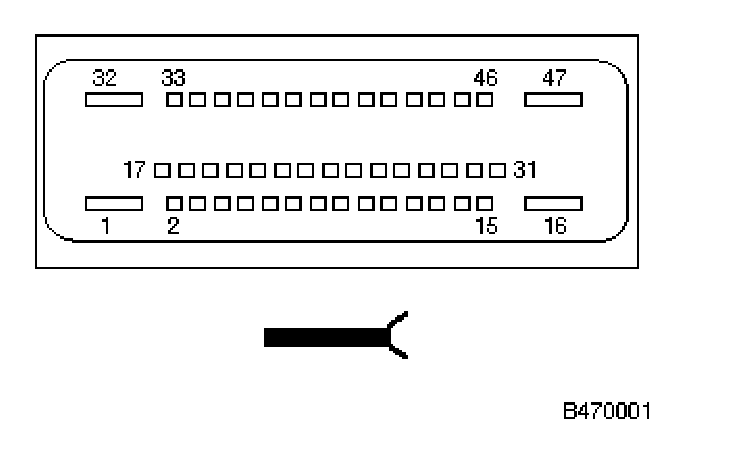

X18303 Component Connector (47-Pin, Black) (ASC MK60, DSC MK60):

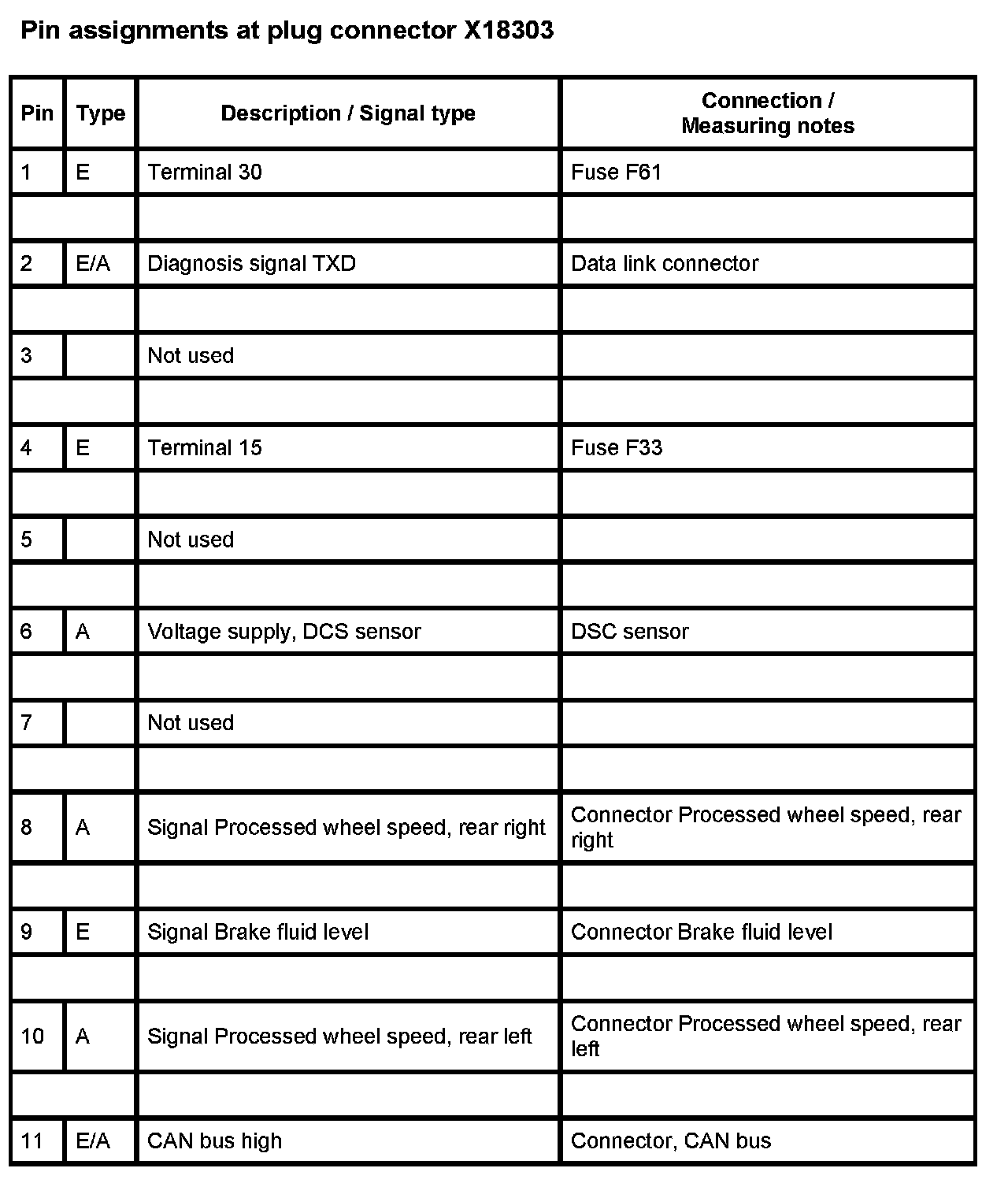

X18303 - Part 1:

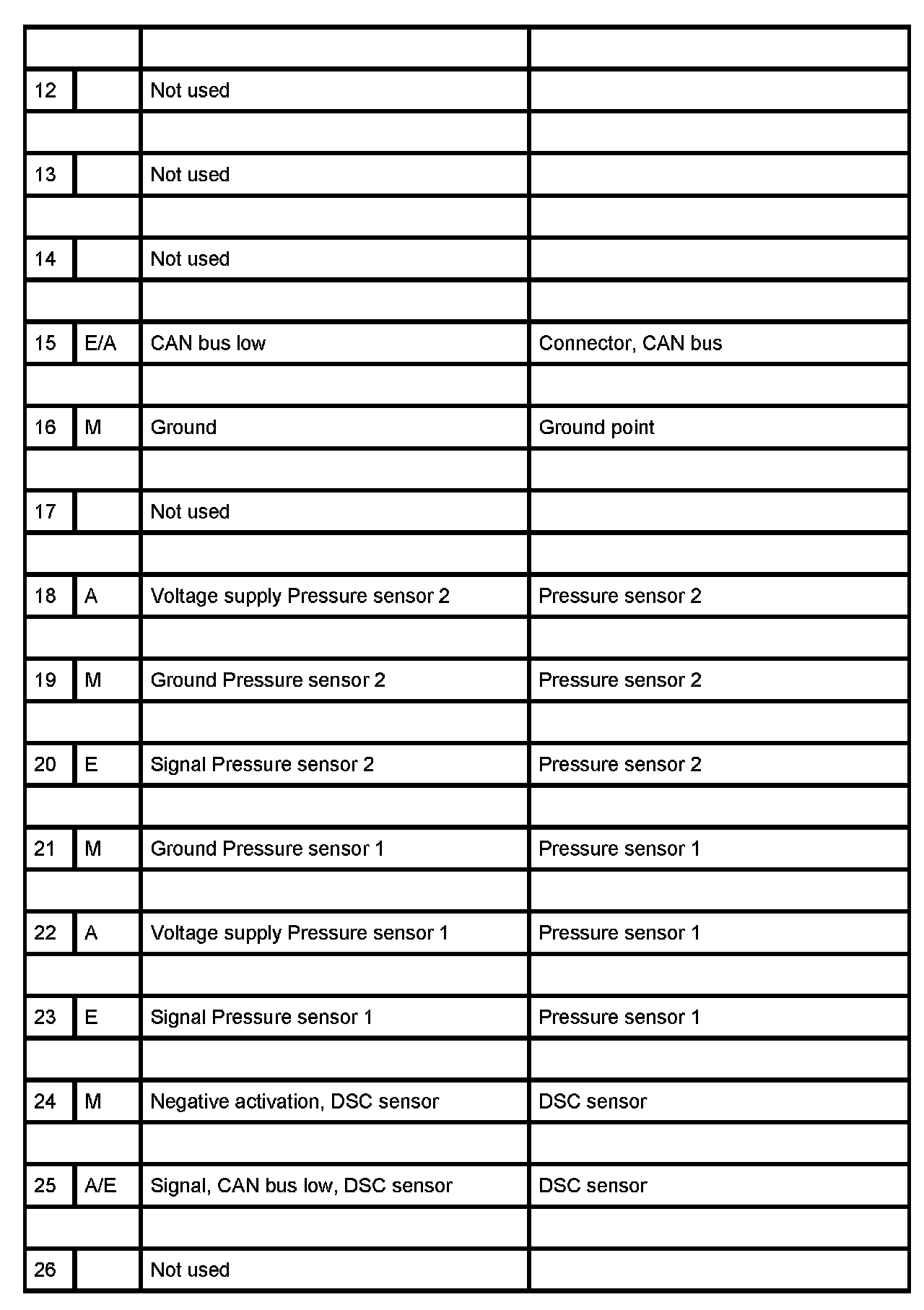

X18303 - Part 2:

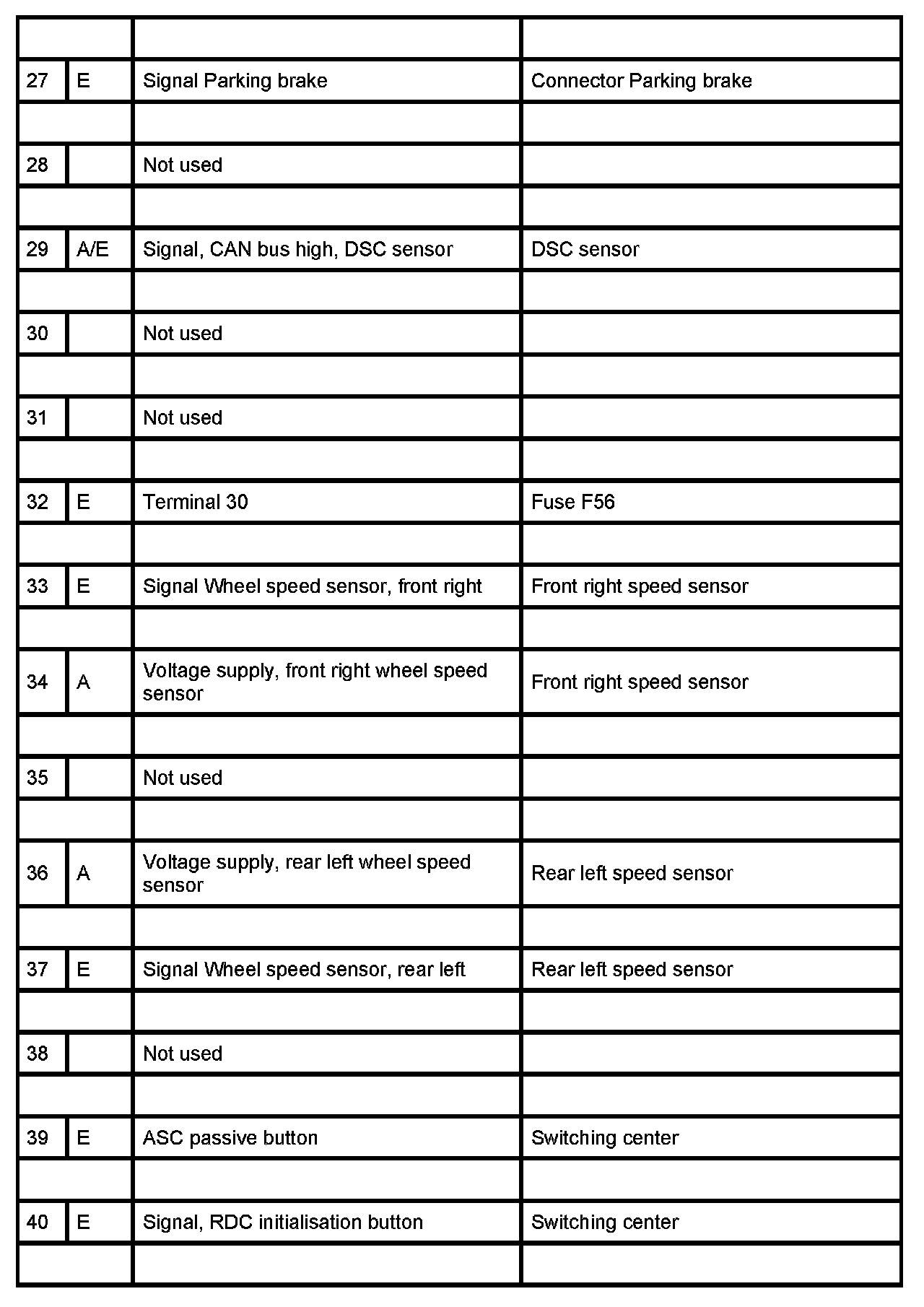

X18303 - Part 3:

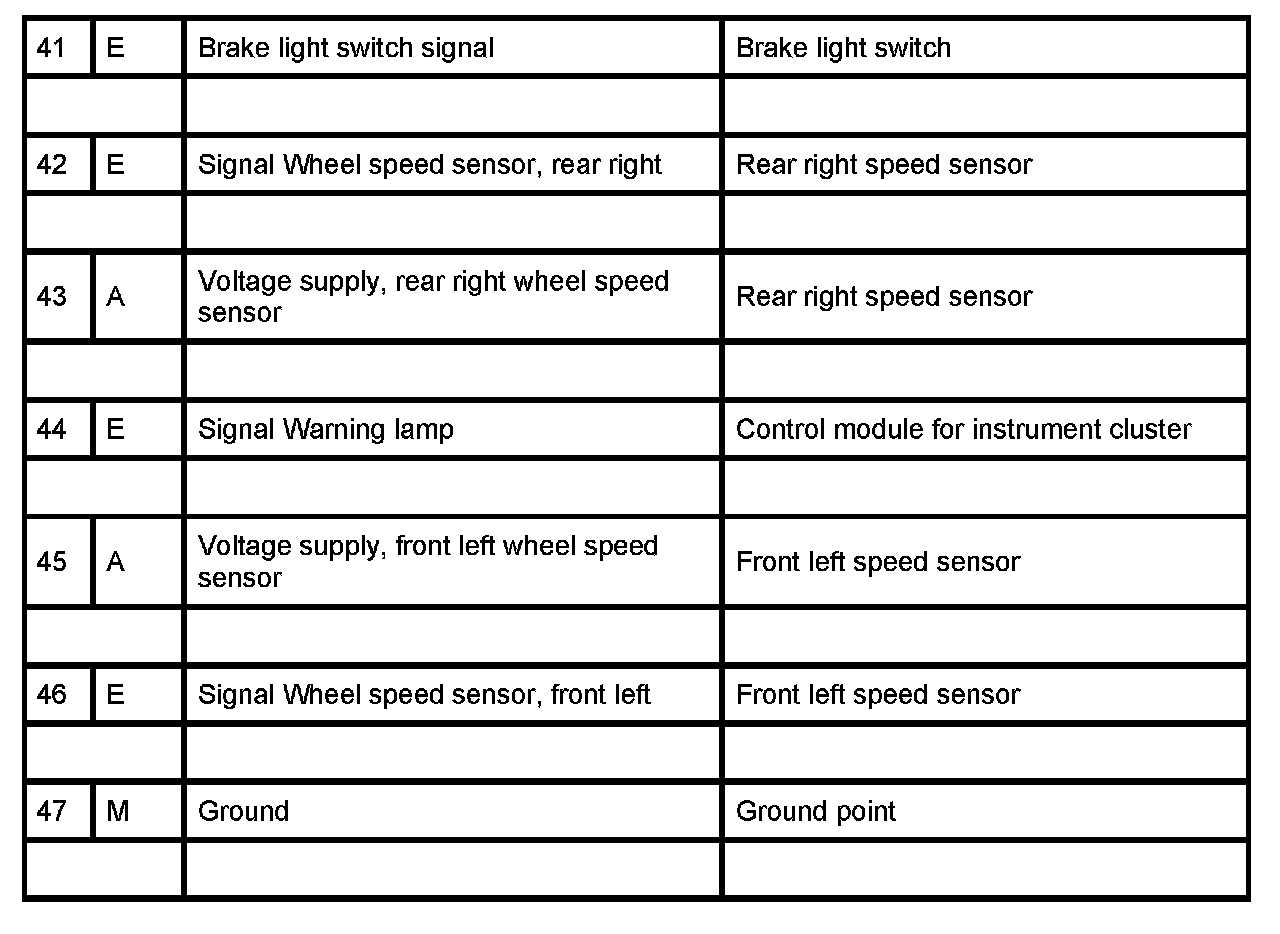

X18303 - Part 4:
