X1746 (A65 ABS/Dsc Unit (Dsc MK20 Dynamic Stability Control))

43-pin, black:



X1746 - Part 1:

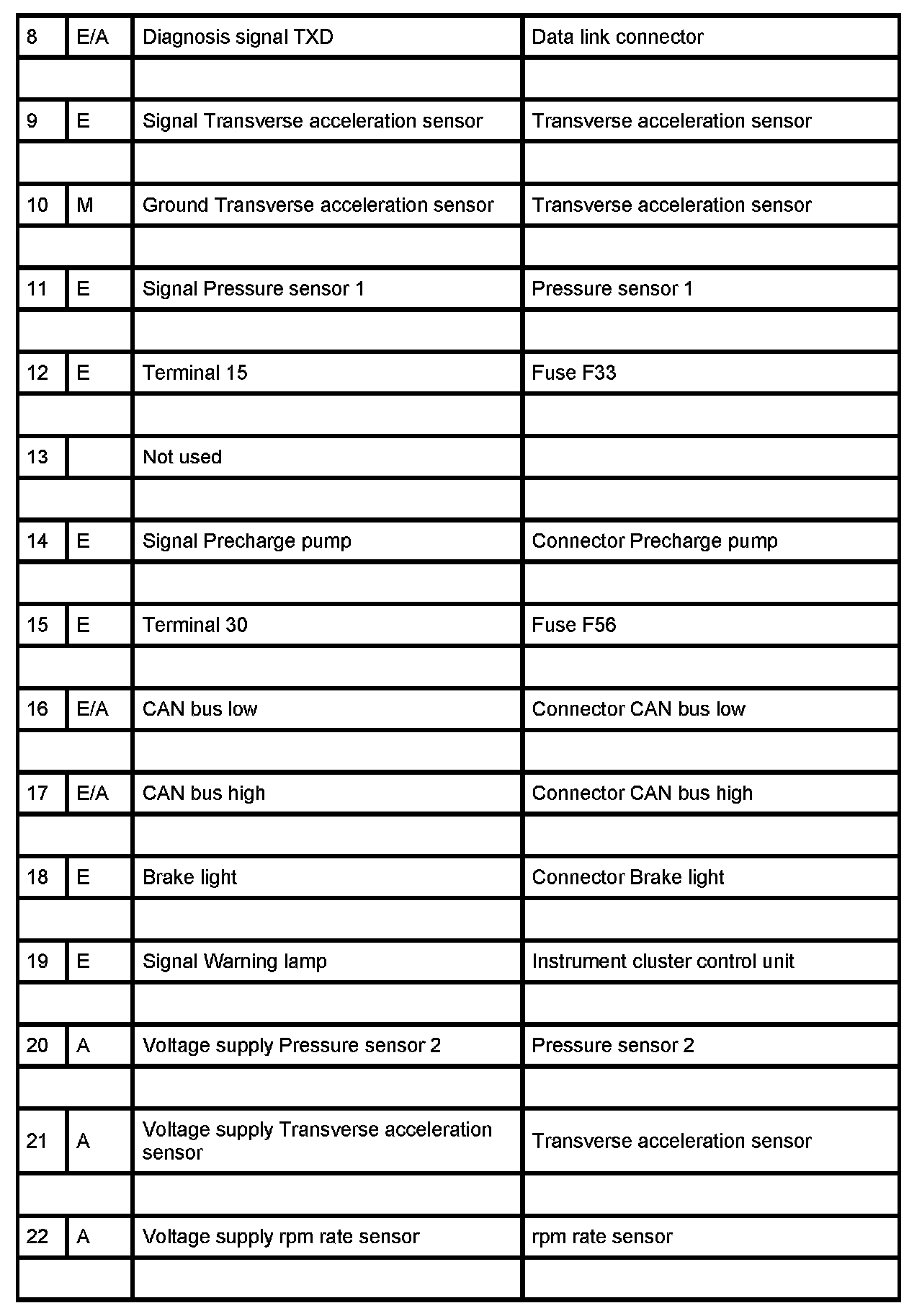

X1746 - Part 2:

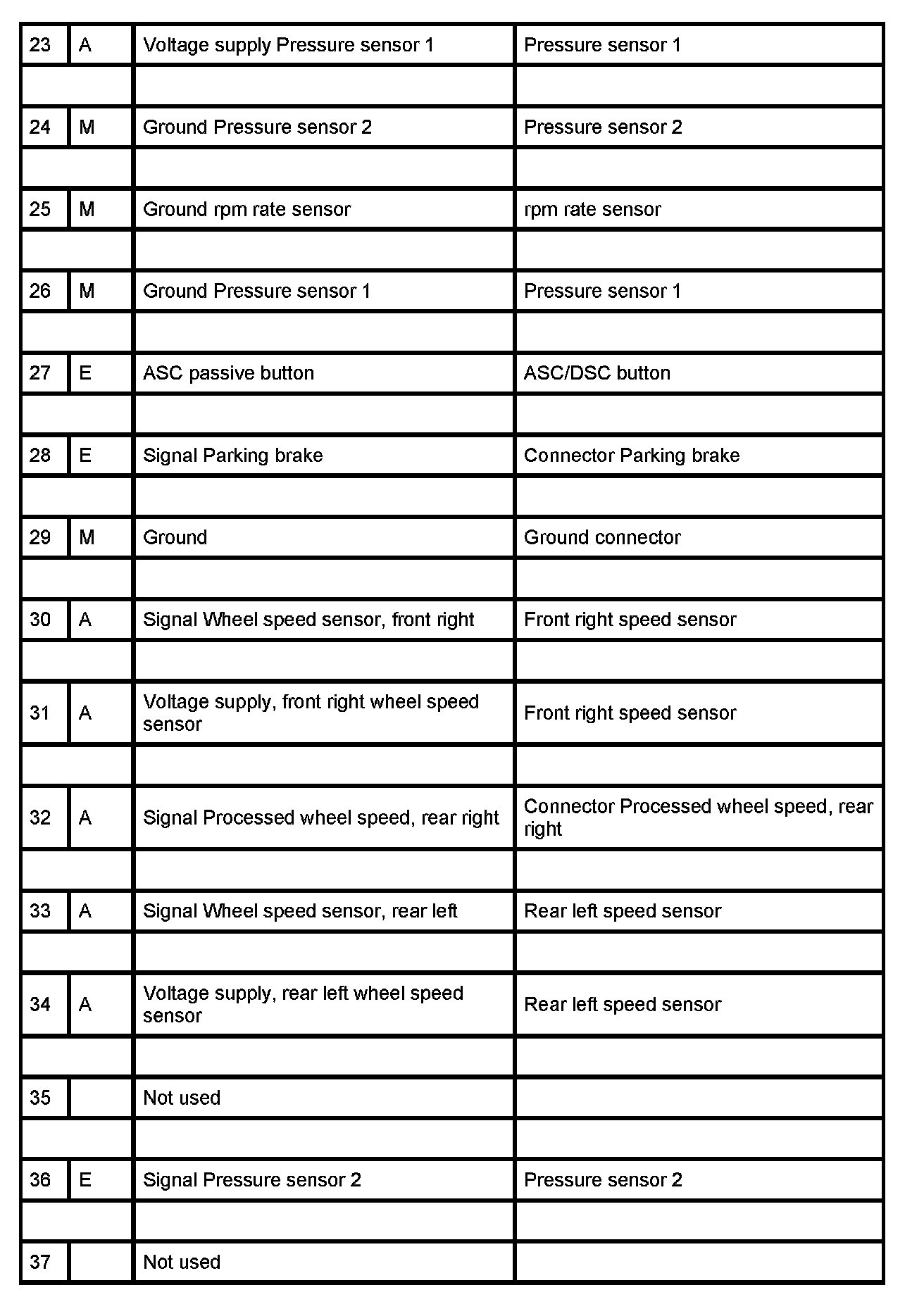

X1746 - Part 3:

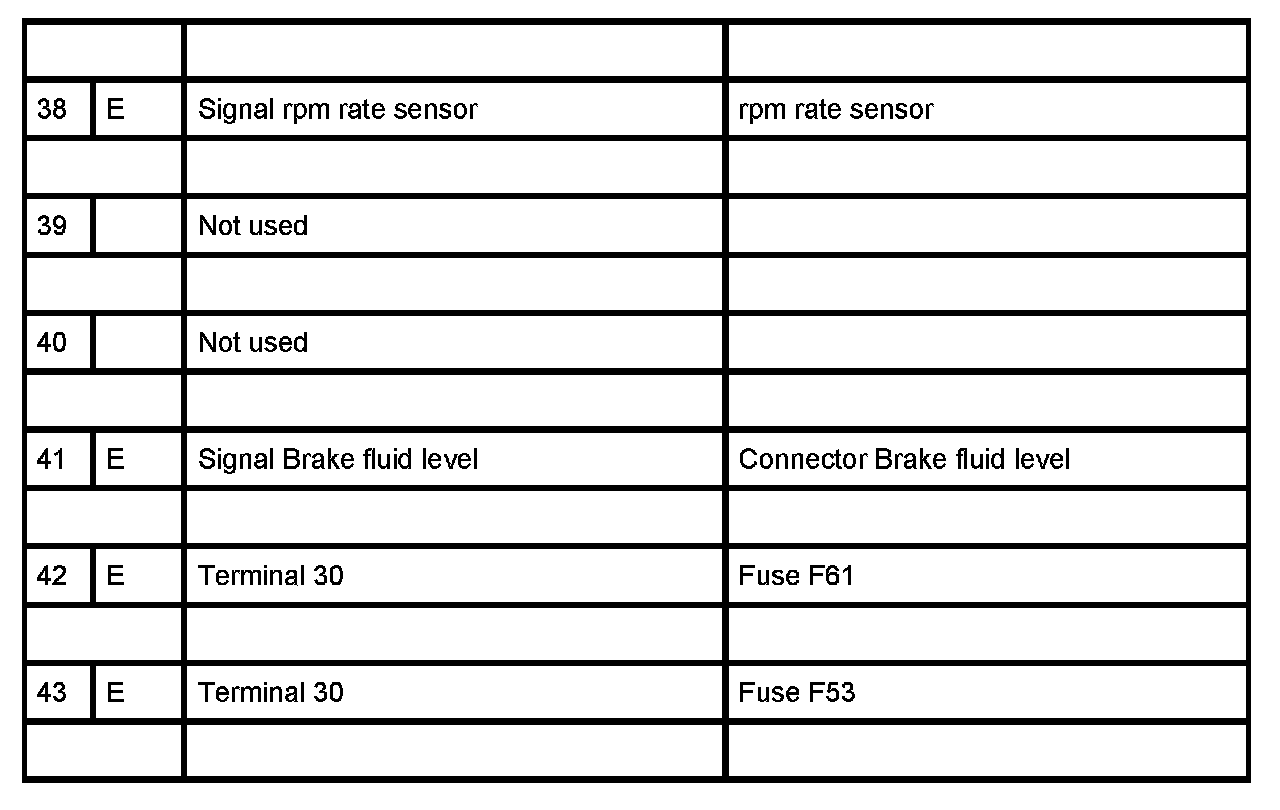

X1746 - Part 4:
