Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13647 >> N9 Radio Control Unit(Stereo System (6 Speakers) With BM on-Board Monitor From 09/01)

N9 Radio Control Unit(Stereo System (6 Speakers) With BM on-Board Monitor From 09/01)

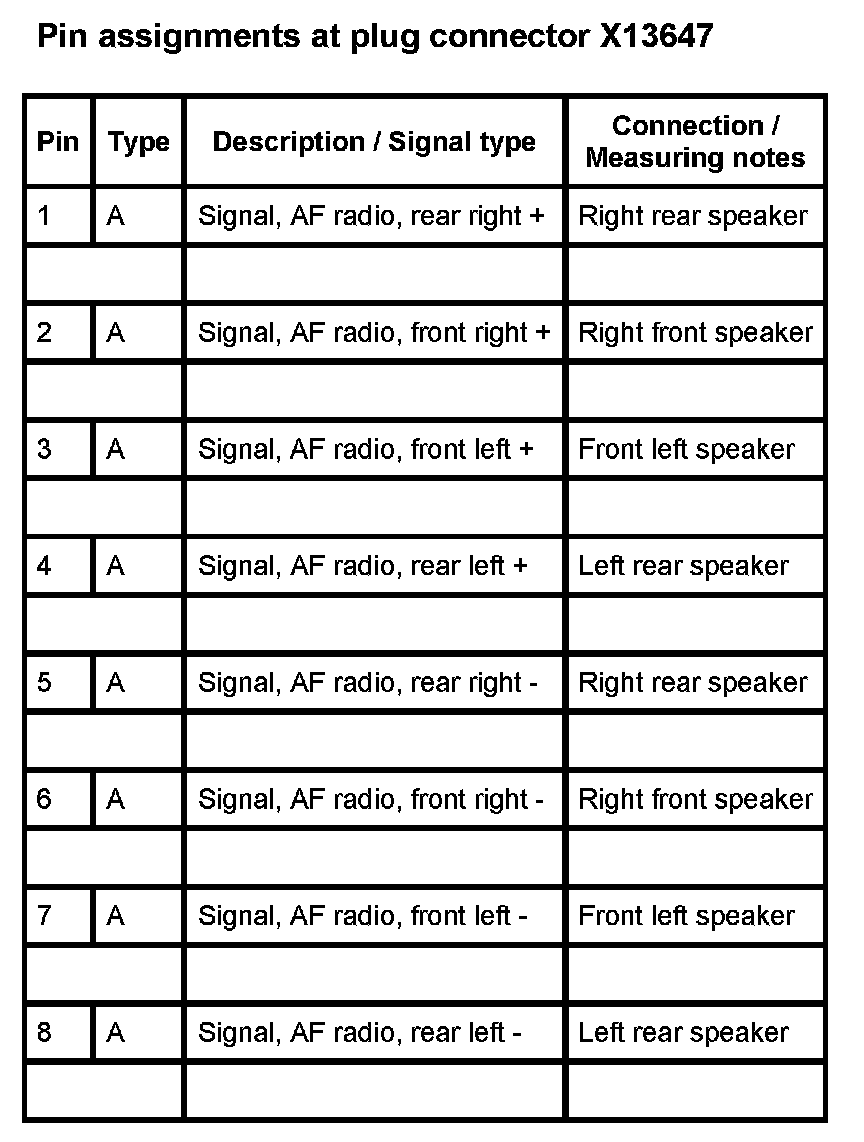

X13647:
