X1313
>>
A112 Navigation Computer (Nav Navigation Computer As of 03/01)
A112 Navigation Computer (Nav Navigation Computer As of 03/01)

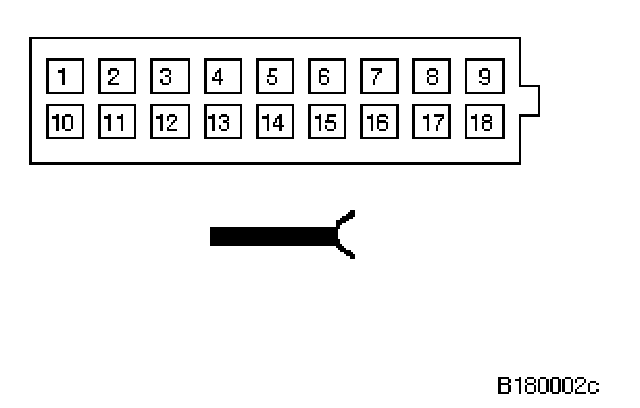

X1313 Component Connector (18-Pin, Blue):

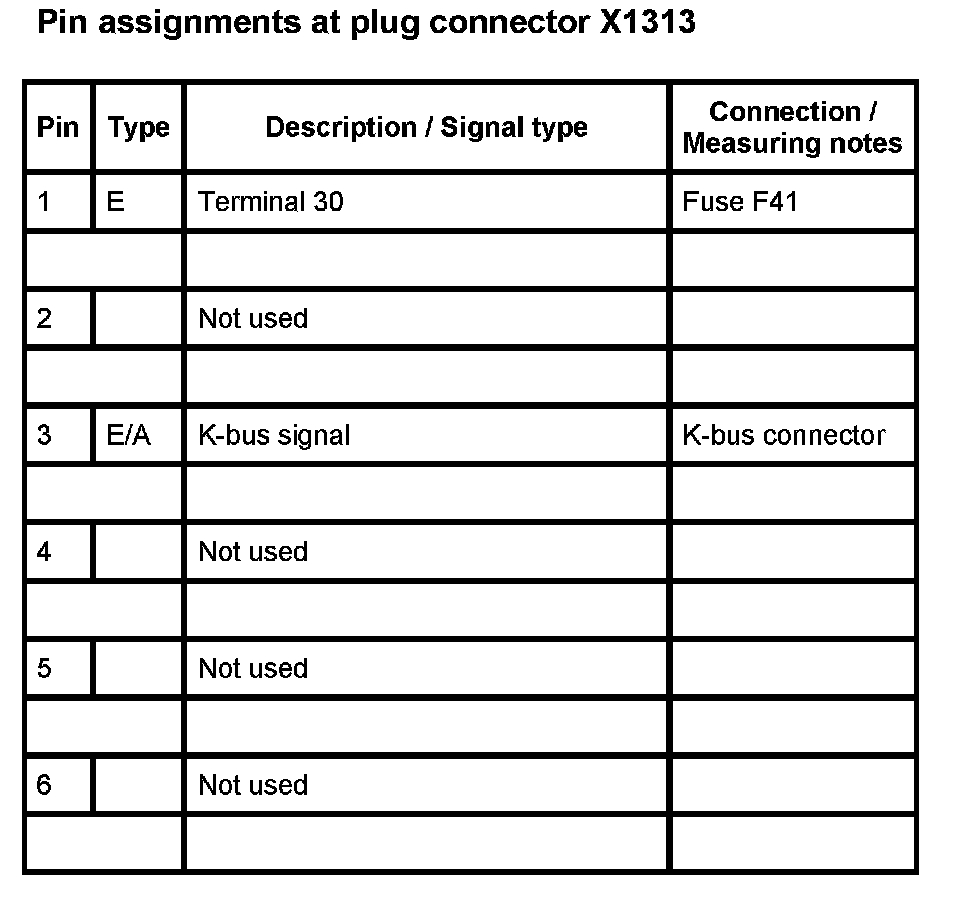

X1313 - Part 1:

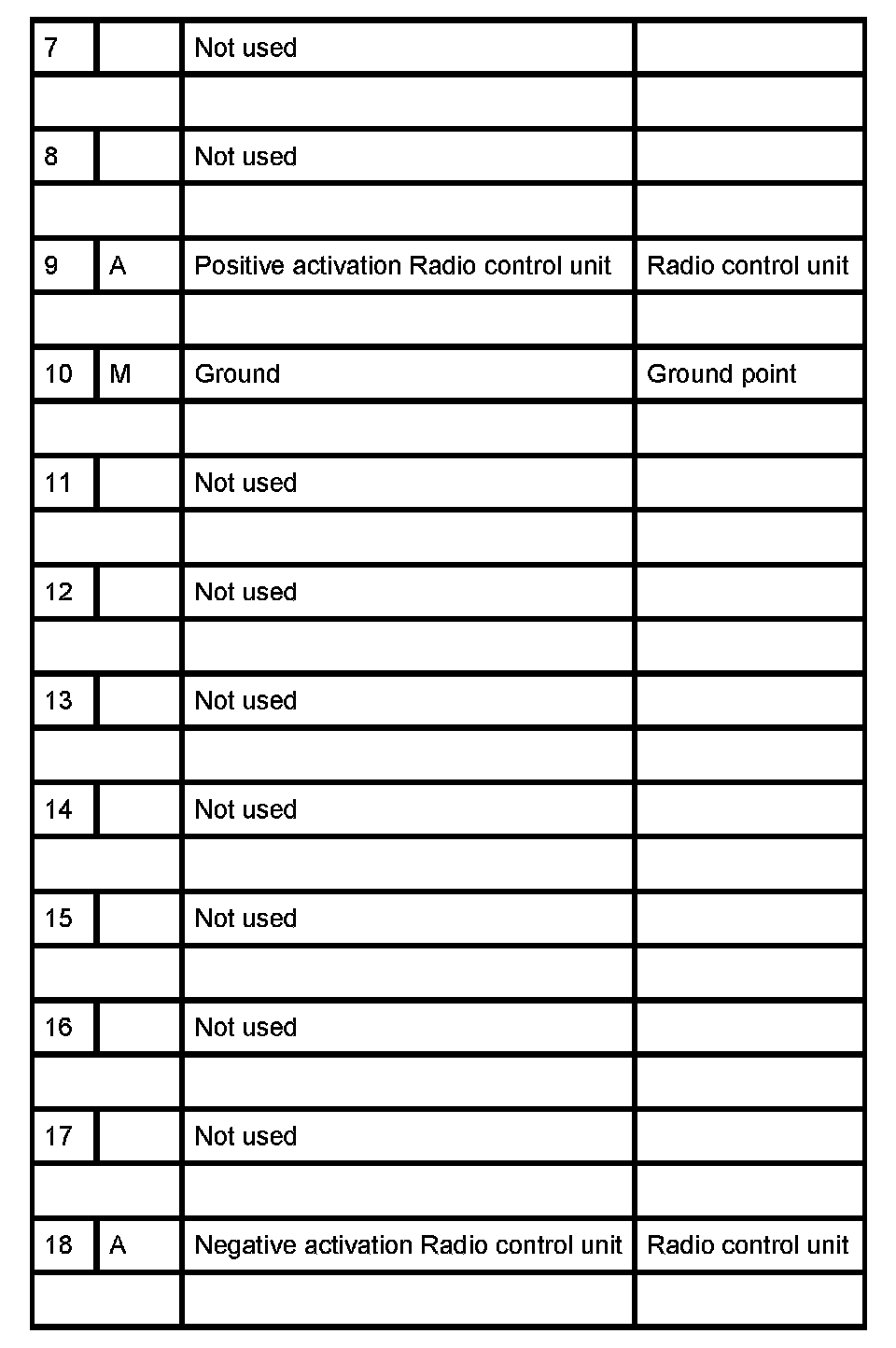

X1313 - Part 2:
