X11175 Adapter 614464, Storage Location C109
>>
A2 Control Module For Instrument Cluster (DME Motor Electronics MSS54 As of 03/04)
A2 Control Module For Instrument Cluster (DME Motor Electronics MSS54 As of 03/04)

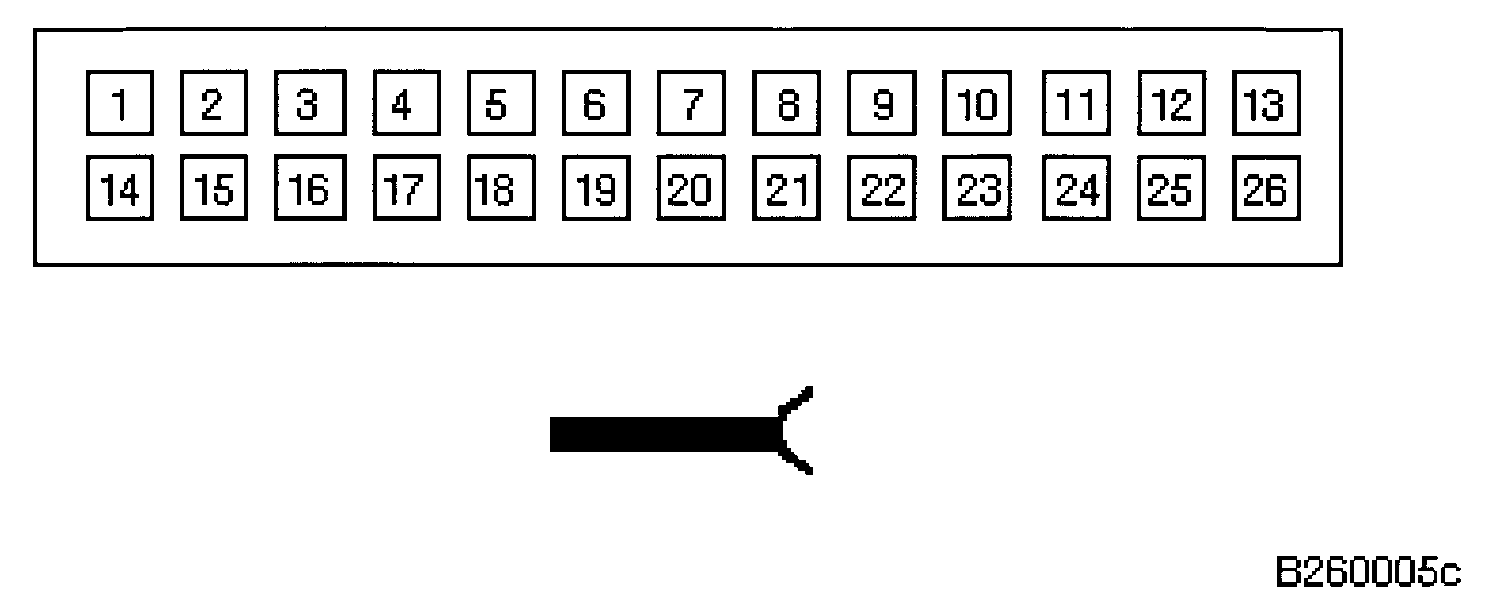

X11175 Component Connector (26-pin, Black):

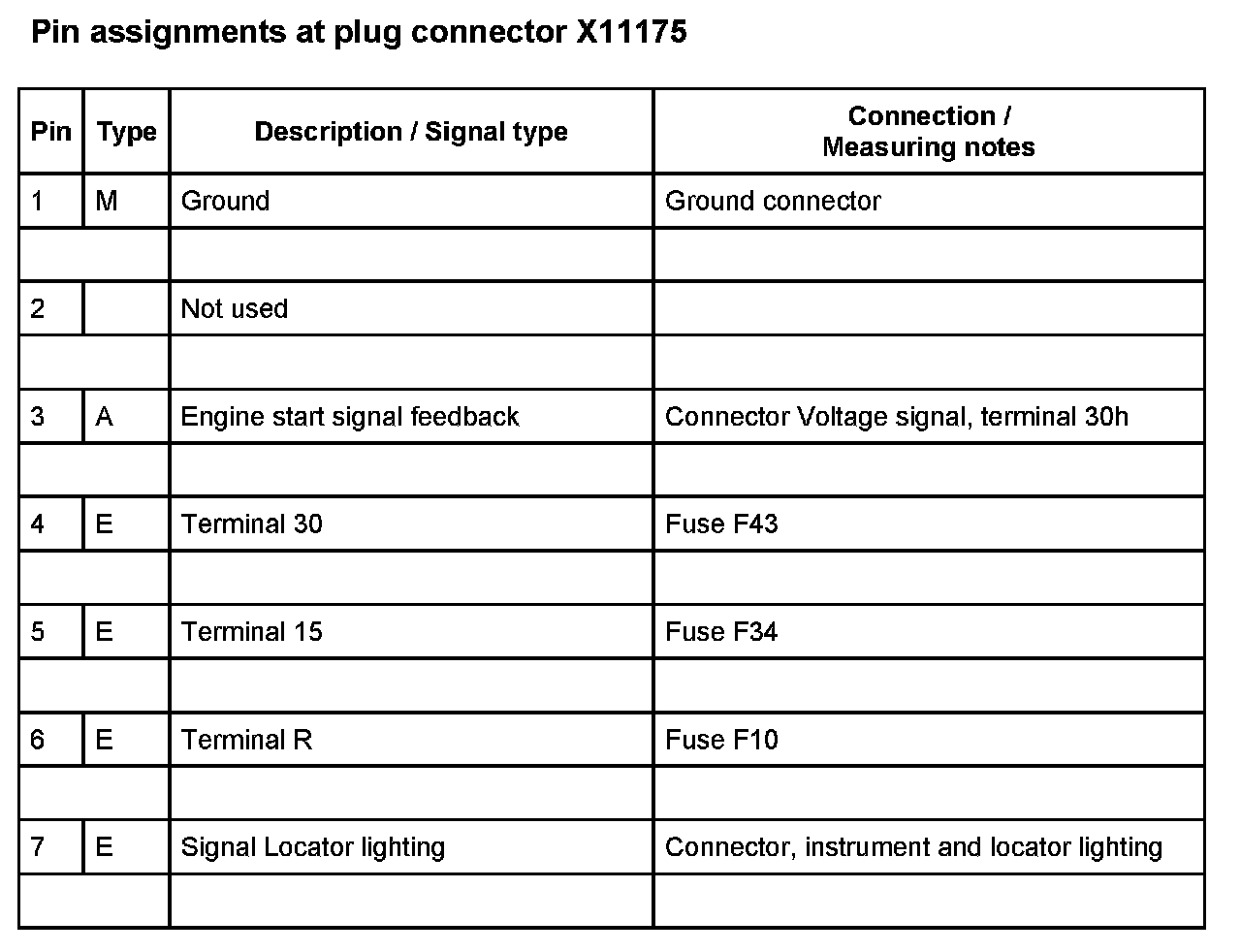

X11175 - Part 1:

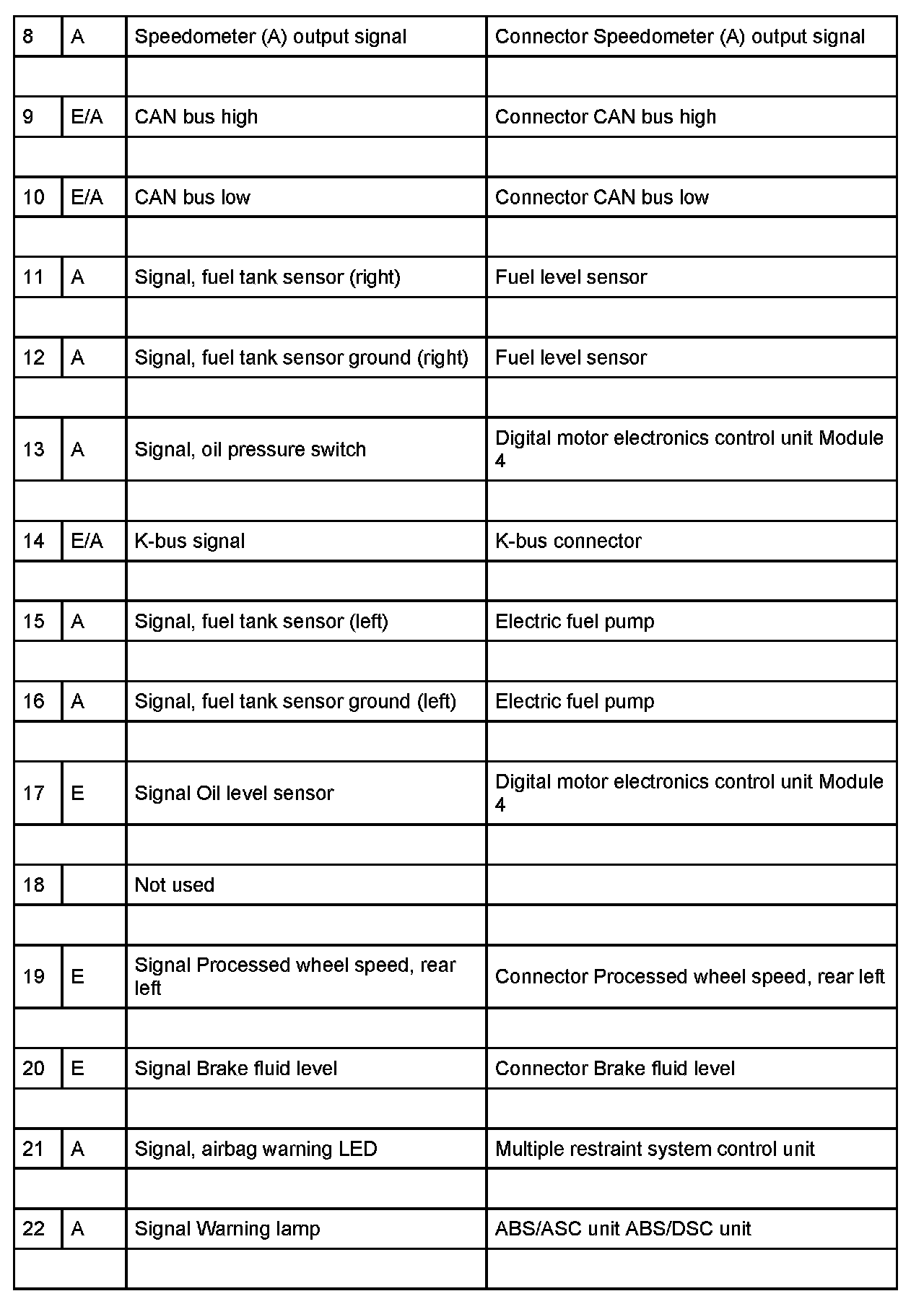

X11175 - Part 2:

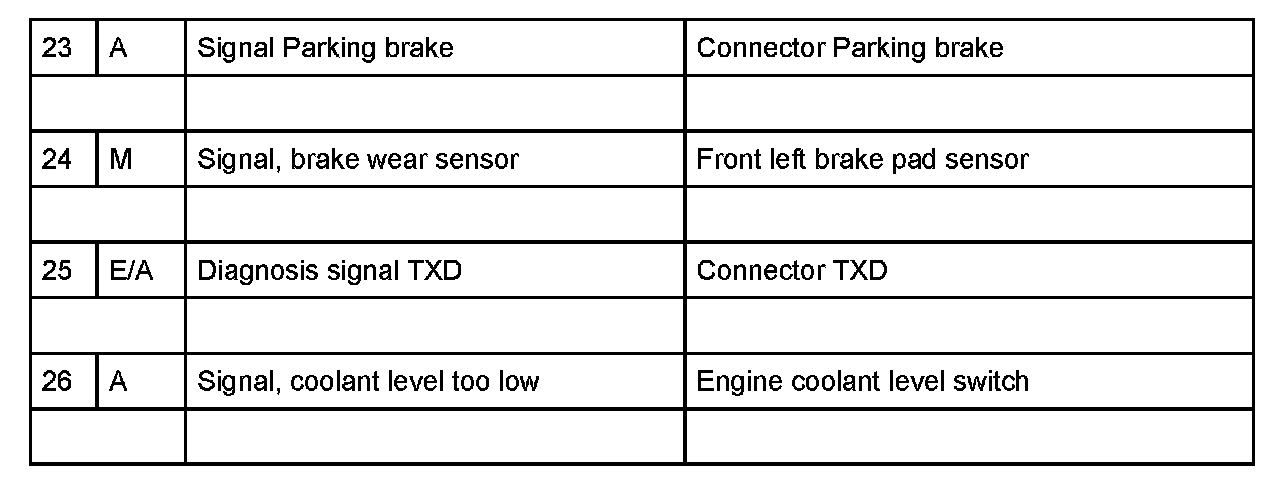

X11175 - Part 3:
