Replacing ABS Front Pulse Generator (MK60)

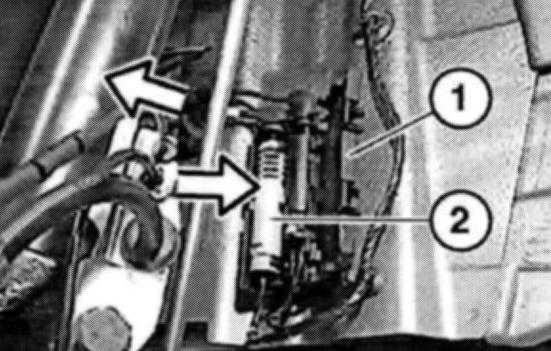

Open plug housing (1), pull plug connection (2) out of fixture and disconnect.
Pull cable with rubber grommet out of fixture on spring strut and on body.
Installation: Make sure plug connection is properly engaged and rubber grommet is correctly seated.

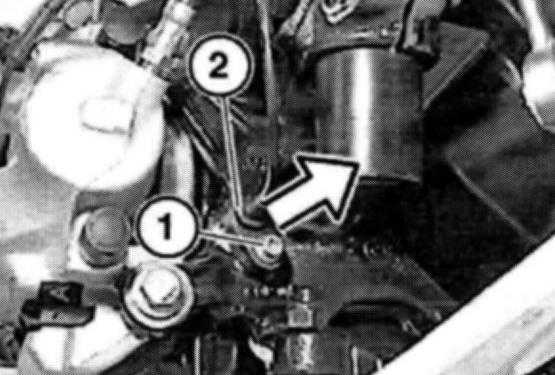

Release hexagon socket screw (1).
Withdraw ABS pulse generator (2) from bore hole.
Installation:
Pulse generator to swivel bearing / wheel carrier 8 Nm





Installation:
There are different pulse generators for the MK60.
Pulse generators are marked "R" (right) and "L" (left).
Right pulse generator has two green markings between sensor and grommet.

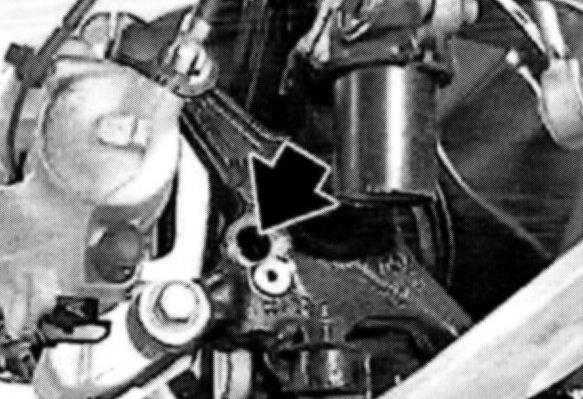

Installation: Clean hole for pulse generator and grease with lubricating grease Staburags NBU 12/K BMW Service Operating Fluids.
