Parking Brake Lever: Service and Repair

Removing and installing/replacing handbrake lever

Remove storage tray.
If necessary, remove center armrest.
Installation:
Adjust handbrake after completing work.
Follow adjustment instructions.





Disconnect lines to handbrake indicator switch.

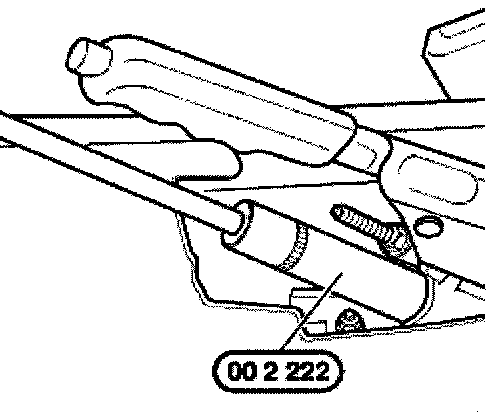

Release adjustment nuts with special tool 00 2 222 and screw down fully from Bowden cables.
Installation: Use new screws.





Release screws (1 and 2).
Remove handbrake lever.
