Replacing Brake Unit (MK60)

DSC (Dynamic Stability Control)

Note: General Information.
After completing work:
Bleed brake system with DSC.

Remove brake master cylinder for DSC (MK60).
Remove DSC hydraulic unit (MK60).
Remove brake pedal.

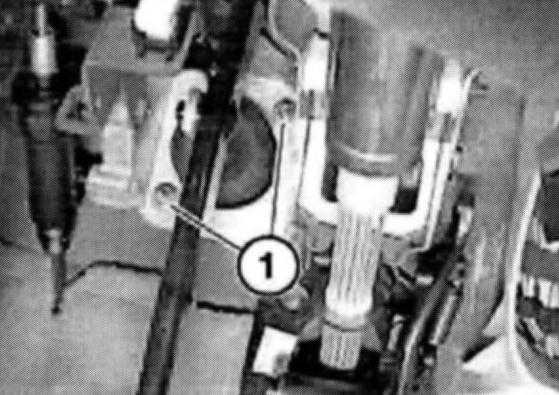

Unscrew nuts (1).
Installation:
Replace self-locking nuts.
Brake booster to pedal assembly console 22 Nm
NOTE: IMPORTANT: retighten 1x after 30 minutes on brake booster.


Note: Do not use any force when removing and installing the brake unit; the brake unit can be damaged under certain circumstances.





Carefully remove brake unit (1) from bulkhead and tilt out in direction of engine.





Remove brake unit vertically upwards out of equipment compartment.
