34 31 505 Removing and Installing/Replacing Brake Master Cylinder For DSC (MK60)

34 31 505 Removing and installing/replacing brake master cylinder for DSC (MK60)

DSC (Dynamic Stability Control)

Note:
Read and comply with General Information. Service Precautions
Bleed brake system after completing tasks. Brake Bleeding
Remove expansion tank. 34 31 181 Removing and Installing/Replacing Expansion Tank For Hydraulic Brake Actuation
Remove pressure sensor "V" for DSC. Replacing Pressure Sensor "V" For DSC
Remove pressure sensor "H" for DSC. Replacing Pressure Sensor "H" For DSC

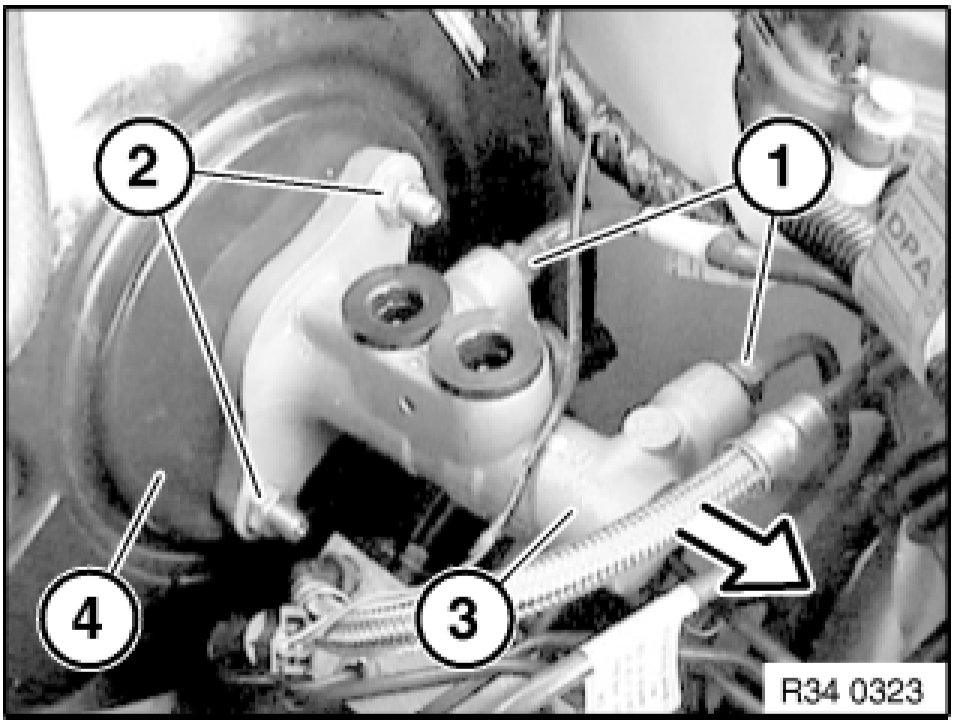

Detach brake line (1).

Installation:
M10x1 18 ± 1 Nm
M12x1 18 ± 1 Nm

Unfasten hex nuts (2)
Withdraw brake master cylinder (3) from brake booster (4)

Installation
Replace self-locking nuts 26 Nm





Installation: Replace O-ring (1).





Installation:
When inserting brake master cylinder (2) into brake booster (1), make sure that pressure rod of brake booster (1) and pressure rod of brake master cylinder (2) lie on a single plane.
