34 11 250 Replacing A Front Brake Anchor Plate/Brake Guard Plate

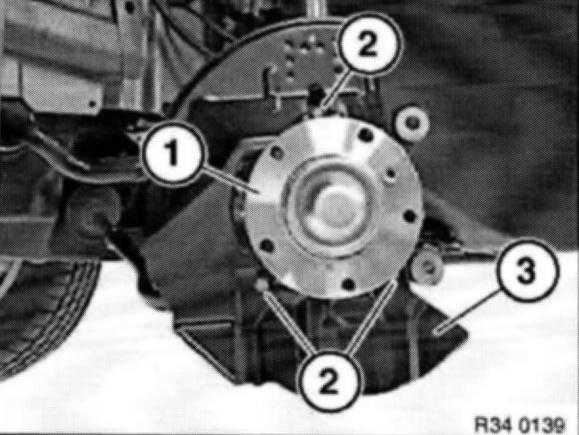

Remove wheel hub (1).
For 4WD:
Remove brake disks only.
Release screws (2) and remove brake guard plate (3).
