51 71 080 Removing and Installing/Replacing Heater Bulkhead
51 71 080 Removing and Installing/Replacing Heater BulkheadNecessary Preliminary Tasks:
- Remove microfilter for passenger compartment ventilation. Please refer to: Vehicle/ Heating and Air Conditioning/ Cabin Air Filter/ Service and Repair/ Removal and Replacement Service and Repair

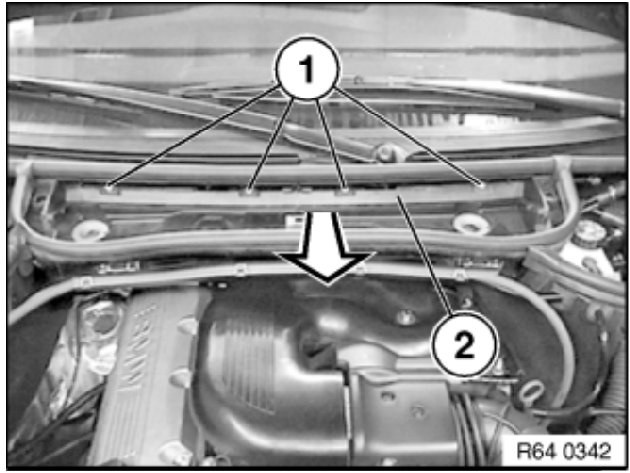

Unclip retainers (1) and feed cable out of cable duct.

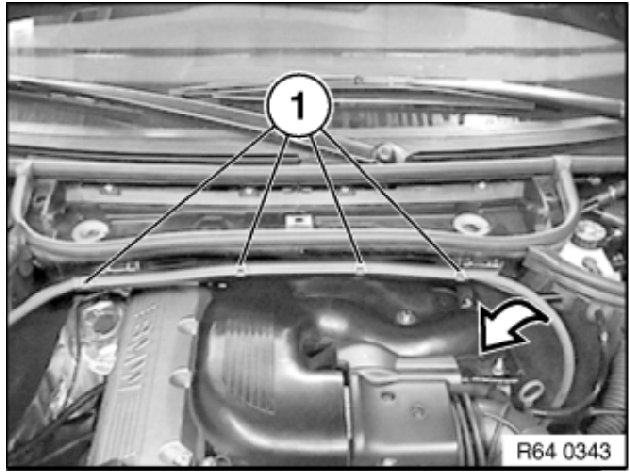

Release screws (1) and remove microfilter housing towards front.
Installation:
Seals on microfilter housing must not be damaged or missing.

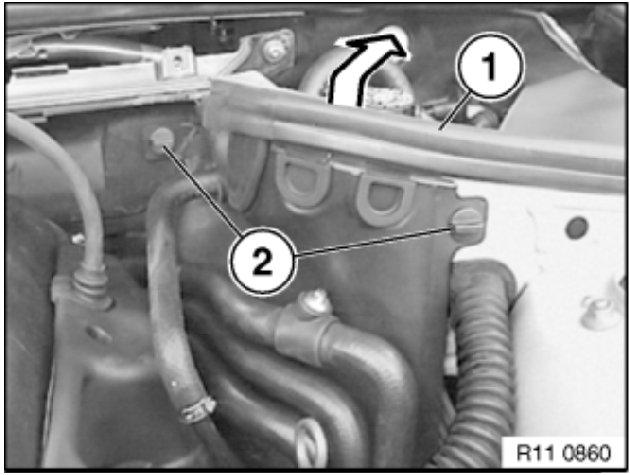

Detach rubber strip (1).
Release locks (2) and pull side trim forwards a little.

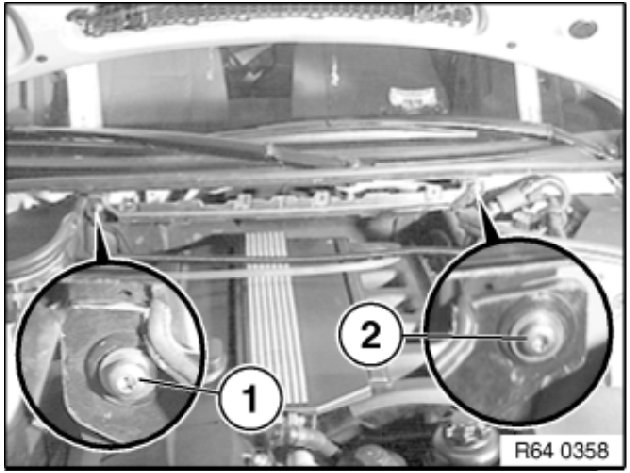

Remove screws (1) and (2).
Lift out heater bulkhead.
