Replacing Front Headrest (Normal/Manual)
Removing And Installing/Replacing Front Headrest (Normal/Manual)
Move backrest back.

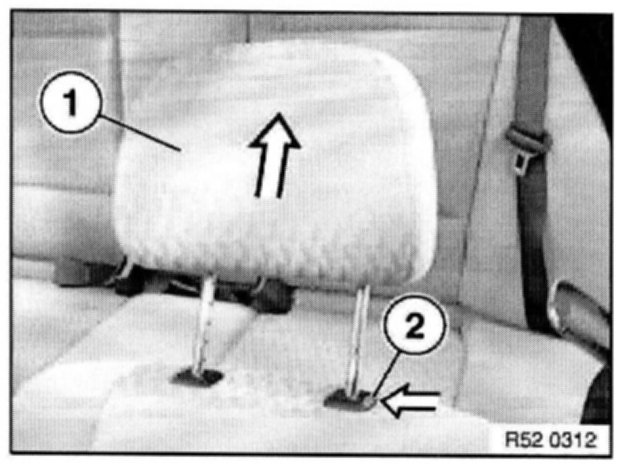

Move headrest (1) as far upwards as possible.
Unlock lock (2) and remove headrest (1).
