Removing and Installing or Replacing Left or Right Rear Headrest

52 24 390 Removing And Installing Or Replacing Left Or Right Rear Headrest

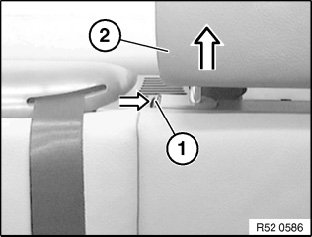

Press release (1) firmly.
Pull out head restraint (2).







Installation:

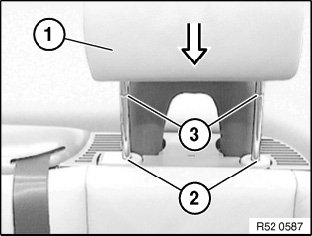

Position guides of head restraint (1) with a slight incline forward on insertion holes (2).
Press head restraint downwards until it engages in notches (3).
