Replacing Seal For Complete Glass Slid/Tilt Sunroof Frame



54 12 ... Replacing Seal For Complete Glass Slid/Tilt Sunroof Frame

Remove complete glass slide/tilt sunroof (frame).

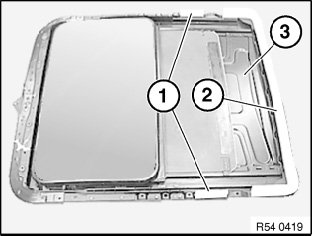

Remove seals (1) and (2) from glass sunroof frame (3).
Clean glued area and stick on new seals.
