Removing and Installing / Replacing Wind Deflector For Glass Sliding/Tilting Sunroof

54 12 497 Removing And Installing / Replacing Wind Deflector For Glass Sliding/Tilting Sunroof







Open glass sunroof lid.

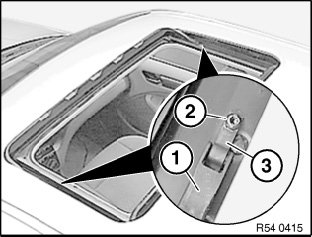

Press down wind deflector (1). Release screws (2).
Remove spring (3) on left/right and wind deflector (1).

Installation:
Tightening torque. 54 12 7AZ.







Installation:

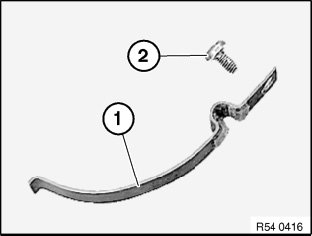

If necessary, replace faulty spring (1) and screw (2).
