Removing and Installing/Replacing Left or Right Roof Drip Molding



54 21 070 Removing And Installing/Replacing Left Or Right Roof Drip Molding

Special tools required:
- 54 1 220

Necessary preliminary tasks:
- Remove roof frame weatherseal from hard top

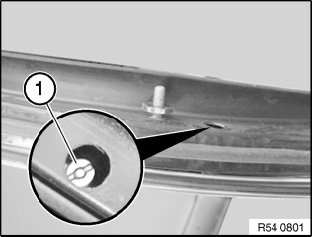

Release slotted nuts (1) with special tool 54 1 220.
Detach drip molding from rubber seal.
