Sedan



51 43 251 Removing And Installing / Replacing Trim Panel For Left Or Right Rear Roof Pillar (C-Pillar)

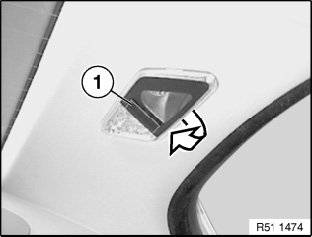

Lift out side interior light (1) from C-pillar trim and disconnect plug connection.

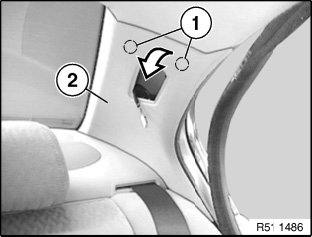

Unclip clips (1) and remove trim (2) towards inside/top.







Installation:

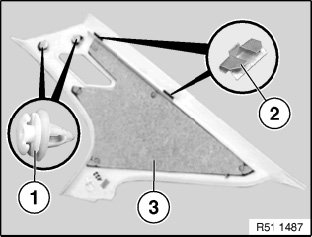

If necessary, replace faulty clips (1) and (2).
