Removing and Installing/Replacing Side Trim Panel, Footwell, on A-Pillar, Left

51 43 070 Removing And Installing/Replacing Side Trim panel, Footwell, On A-pillar, Left

Remove panel for pedals.
Remove front entrance cover strip (inside).







Release screw (1) and remove release lever (2).

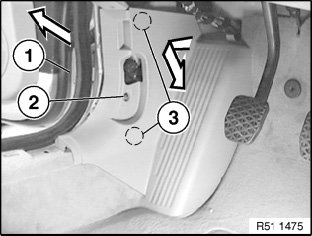

Remove mucket (1) in area of footwell trim.
Release screw (2).
Push footwell trim (3) a little to rear (guides (3) are unlocked) and detach footwell trim towards inside.







Installation:

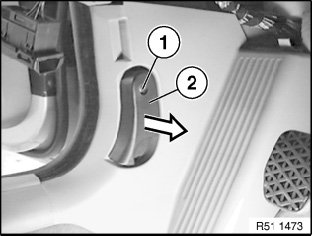

Guides (1) must not be damaged.

Replacement only:
Lift out insert (2) in footwell trim (3).
