Removing and Installing/Replacing Finishing Strip At Front Left or Right Entrance

51 47 065 Removing And Installing/Replacing Finishing Strip At Front Left Or Right Entrance

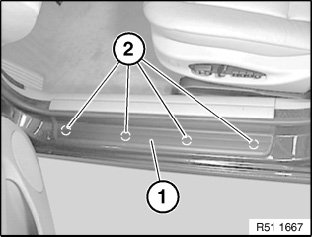

Carefully lever out finishing strip (1) with special tool 00 9 318 (universal wedge) from clips (2) towards top.

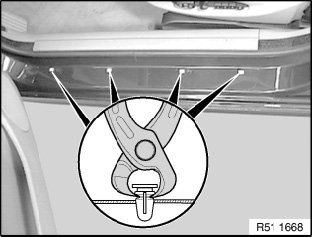

If necessary, lever clips out of entrance with pliers (head of pliers surface-ground).
If necessary, replace damaged clips.

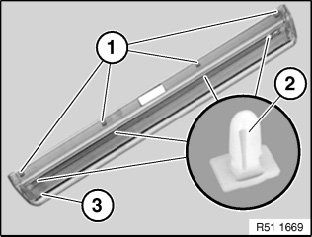

Foam tape (1) must be fitted.
Push clips (2) onto finishing strip (3) and align.
