Removing and Installing / Replacing the Rear (Inside) Left or Right Rocker Panel Strip

51 47 030 Removing And Installing / Replacing The Rear (Inside) Left Or Right Rocker Panel Strip

Remove rear seat, refer to MG 52.







NOTE: For purposes of clarity, shown here without backrest side section.

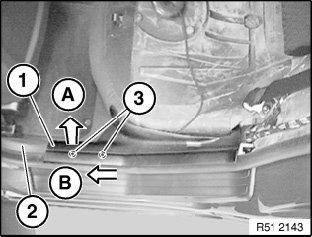

A Lift out entrance cover strip (1) towards inside from trim (2) of door pillar.
B Slide entrance cover strip (1) approx. 20 mm forwards out of clips (3) and remove.







Lever out clips (1) with pliers (head of pliers surface-ground)







Installation:

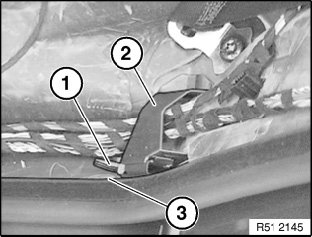

Guide (1) on bracket (2) must not be damaged.
When installing entrance cover strip, insert guide lug between guide (1) and door seam (3).







Installation:

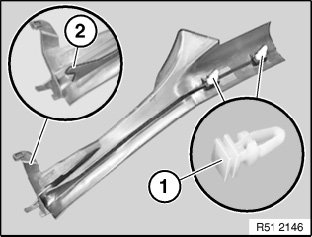

If necessary, replace defective clips (1).
Guide lug (2) of entrance cover strip (3) must not be damaged.
