Removing and Installing/Replacing Finisher For Top of Rear Apron

51 46 050 Removing And Installing/Replacing Finisher For Top Of Rear Apron

Replacing left trunk wheel housing trim.

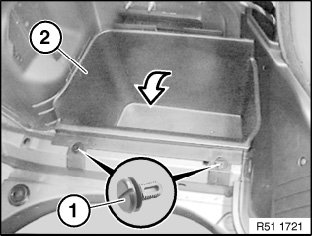

Release expansion rivets (1) and remove tray (2).







Version with battery in luggage compartment:

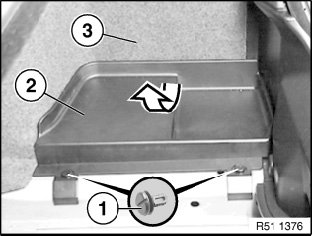

Turn rotary clip (1) through 90 ° and feed shelf (2) out of trunk wheel arch trim (3).







Version with battery in engine compartment:
Replace right trunk wheel housing trim.

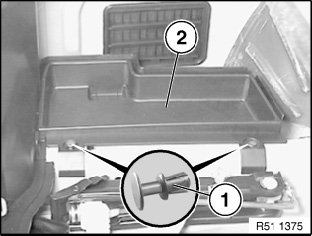

Turn rotary clip (1) through 90 ° and remove shelf (2).

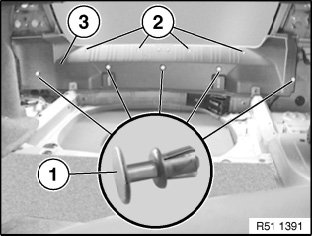

Release expansion rivets (1).
Lever out caps (2).
Release screws and remove trim (3).







Replacement only:

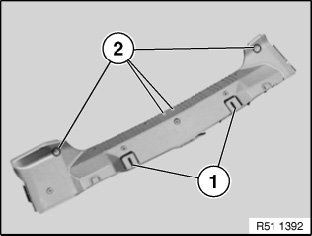

Lever out trims (1) and caps (2).
