51 16 366 Removing And Installing Right Glovebox With Housing (Convertible)

51 16 366 Removing And Installing Right Glovebox With Housing (Convertible)

Open glovebox.







Lever glovebox light (1) out of opening (2).
Disconnect plug connection and remove glovebox light (1).

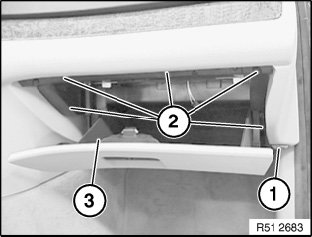

If necessary, release pin (1).
Release screws (2) and remove glovebox (3) with insert downwards.

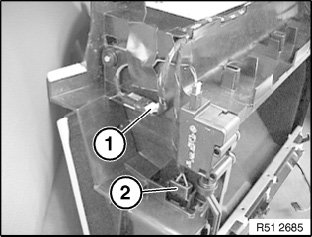

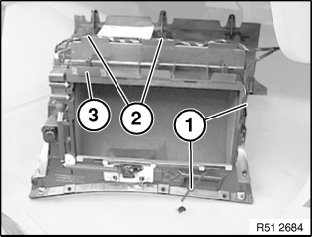

Feed cables (1) and (2) out of guides on glovebox carrier (3).







Disconnect plug connections (1) and (2).
