Glove Compartment Lock Actuator: Service and Repair

Removing And Installing/Replacing Servodrive For Glovebox Lock

Up to 09/2000:
Remove glovebox on right.

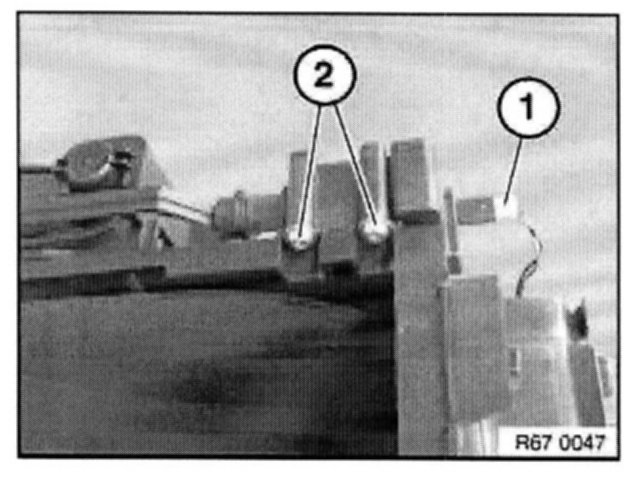

Disconnect plug connection (1).
Loosen screws (2).

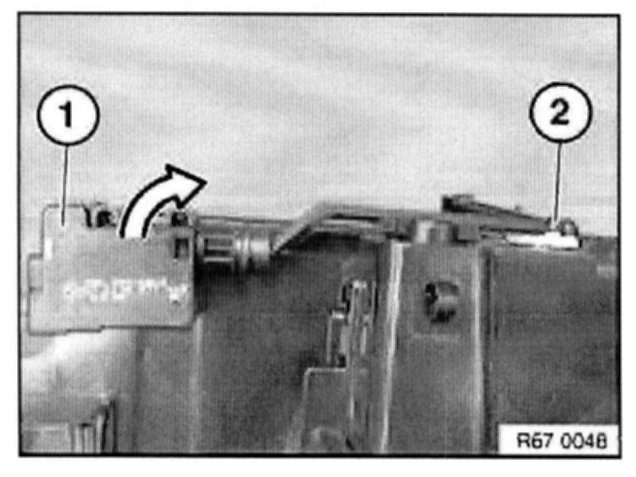

Remove servodrive for glovebox lock (1) in direction of arrow and unclip ball-and-socket joint (2).

From 09/2000:


NOTE: Servodrive for glovebox lock is located in upper section glovebox fastener.







Loosen screws (1).
Raise upper section glovebox fastener (2) and disconnect plug connection underneath.

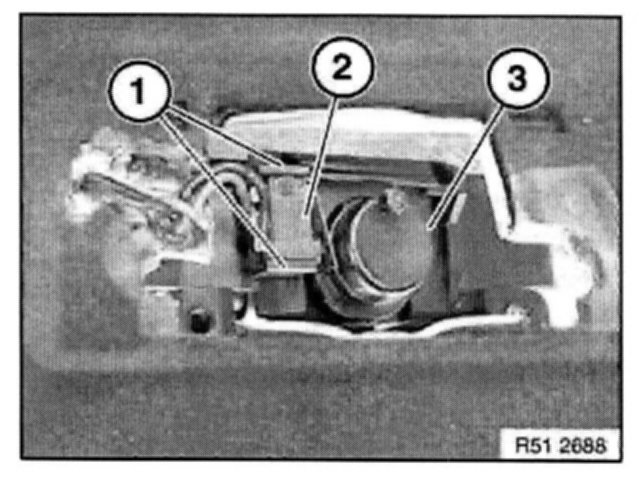

Open detent lugs (1) and remove microswitch (2) from lower section glovebox fastener (3).
Remove upper section glovebox fastener.
