Replacing Switch Unit In Center Console




Replacing Switch Unit In Center Console

Remove and install switch unit in center console

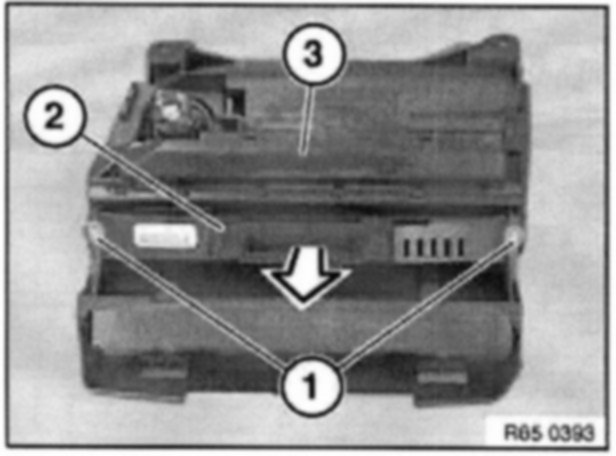

Loosen screws (1).
Remove switch unit (2) from function carrier for switch center (3) in direction of arrow.
