51 16 211 Removing And Installing/Replacing Finisher For Storage Tray

51 16 211 Removing And Installing/Replacing Finisher For Storage Tray

Version with automatic transmission only:
Remove finisher for preselector lever.

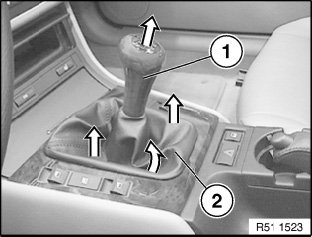

Jerkily remove knob (1) for selector lever towards top.
Lift out rubber gaiter (2).

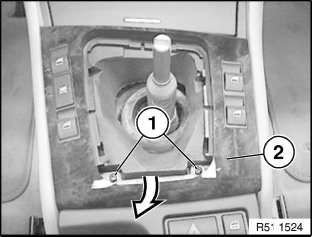

Unscrew bolts (1).
Remove finisher (2) towards rear/top.
Disconnect plug connections and remove finisher (2).







Replacement only:

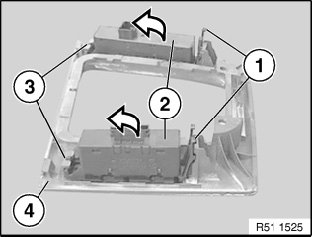

Unlock lock (1), unscrew switch (2) towards top from support (3) and remove from finisher (4) for storage tray.

Installation:
Check function.
