51 16 200 Removing And Installing Storage Tray

51 16 200 Removing And Installing Storage Tray

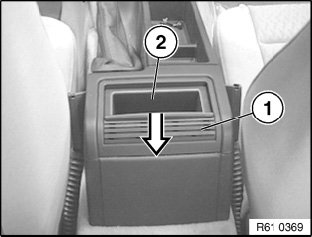

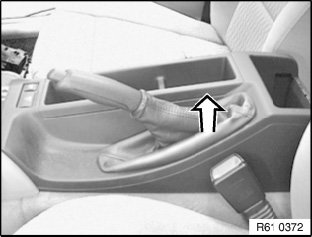

Press roller cover (1) down a little; this pushes the storage tray (2) up a little.

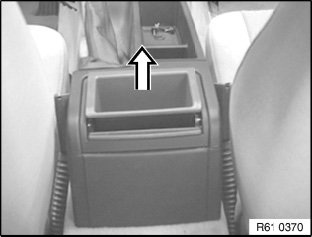

Take out shelf or ashtray towards top.

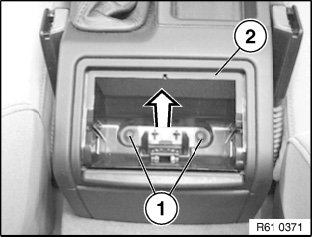

Release screws (1) and remove bracket (2) for shelf or ashtray.







Smoker package:
Disconnect plug connection (1) and remove bracket (2).

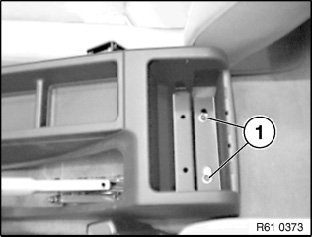

Release screws (1).

Installation:
If necessary, feed out wire for ashtray light.

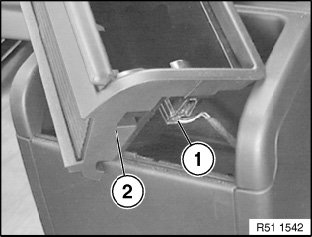

Remove catches (1) and detach trim (2) towards top.







Installation:
Catches (1) and guides (2) on insert (3) must not be damaged.

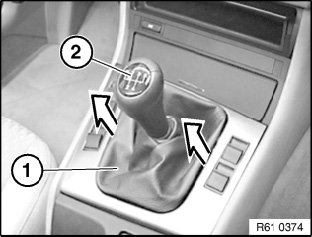

Unclip boot.
Version without center armrest:
Feed storage tray out towards rear and remove.







Unclip boot.

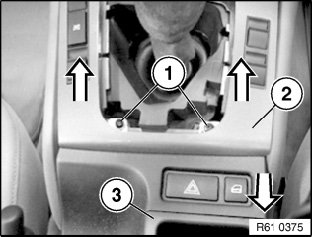

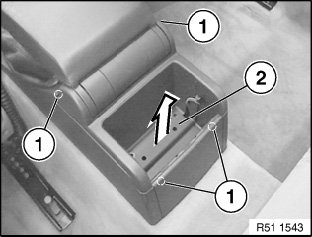

Release screws (1).
Raise trim (2) and feed out storage tray (3) towards rear.
Disconnect plug connection for hazard warning lights/central locking.
Version with car phone:
Raise storage tray and disconnect plug connections.
Version without center armrest:
Feed storage tray out towards rear and remove.







Version with center armrest:

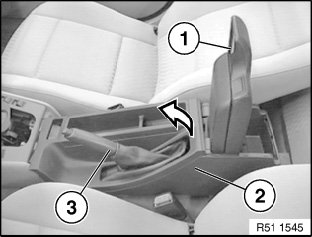

Set up center armrest (1).
Feed out storage tray (2) above center armrest (1) and handbrake lever (3).
