Trunk / Liftgate Striker: Service and Repair

51 24 130 Removing And Installing/replacing Striker For Rear Lid Lock

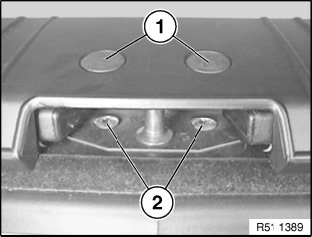

Lever out trims (1).
Unfasten screws (2).

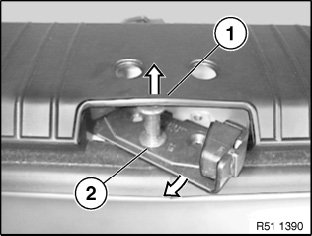

Raise trim (1) slightly and remove rear lid lock (2) (rear lid lock lower section).

Installation:
Adjust rear lid lock.

IMPORTANT: Striker and rear lid lock must not be greased.
