Replacing Front Bumper Trim (M3 / Lightweight Design)

51 11 168 Replacing Front Bumper Trim (M3 / Lightweight Design)

NOTE: Refer to KSD CD for details of preliminary tasks.

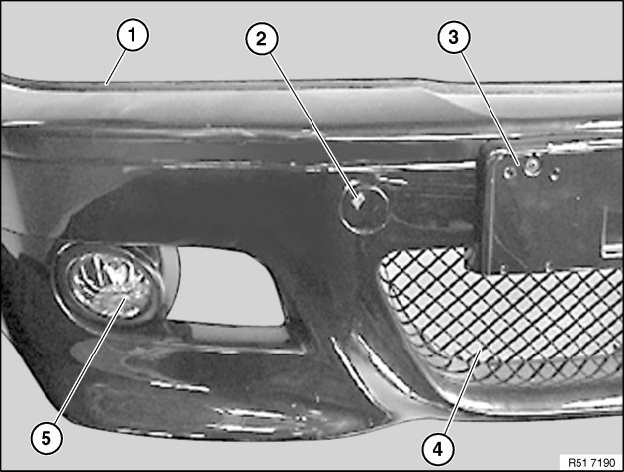

Remove mucket (1).
Remove cover (2) for towing lug.
Remove base (3) for license plate.
Unclip trim grill (4).
Remove left and right fog lamps (5).
