Removing and Installing Front Bumper Trim (M3 / Lightweight Design)

51 11 156 Removing And Installing Front Bumper Trim (M3 / Lightweight Design)

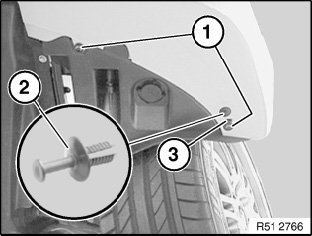

Release screws (1) and expansion rivet (2) on left and right.

NOTE: Lever out catch (3) for removal.







Release screws (1) on left and right.
Lift out side wheel arch liner (2) on left and right.

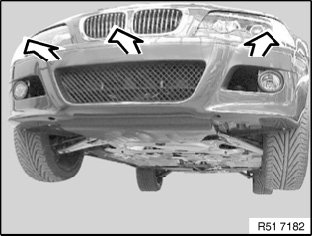

Unclip bumper straight to front (plug connection).

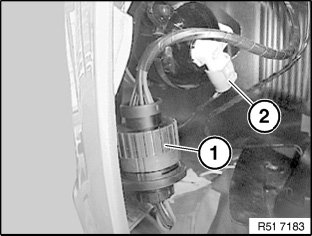

Disconnect left plug connection (1) and unclip from bumper.
Disconnect left and right plug connections (2).
Remove bumper.
