Road Temperature Sensor: Service and Repair

Removing And Installing/Replacing External Temperature Sensor

Special tools required:
- 64 1 020

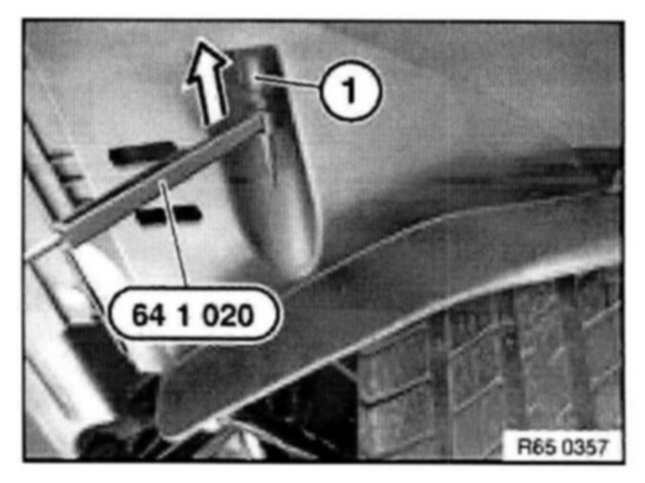

Expand mount for outside temperature sensor with special tool 64 1 020 and feed out outside temperature sensor (1) in direction of arrow.
Pull out ambient temperature sensor (1).
Disconnect plug connection and remove ambient temperature sensor (1).

Installation Note: Make sure ambient temperature sensor (1) engages correctly in its mount.
