Removing and Installing / Replacing Radio Receiver (Radio Navigation/on-Board Monitor)

Removing And Installing/Replacing Radio Receiver (Radio Navigation/On-Board Monitor) (Convertible)

Remove luggage compartment wheel arch trim on left. Service and Repair

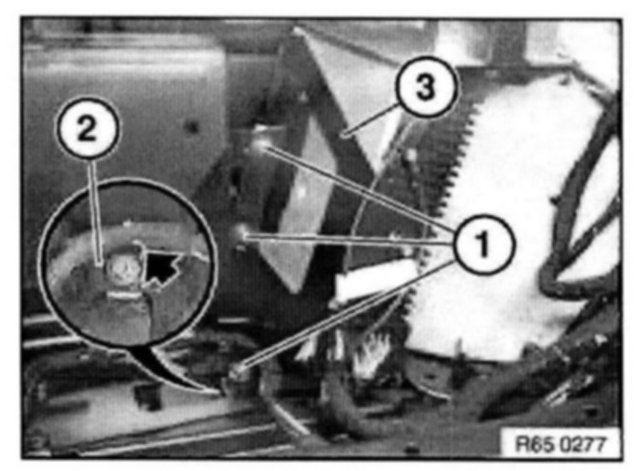

Loosen screws (1).
Unclip wiring harness holder (2).
Pull out holder with radio receiver (3) and disconnect plug connections.

Replacement:
Remove holder for radio receiver.
