Removing and Installing / Replacing Radio Control Panel (Radio Navigation)

Removing And Installing/Replacing Radio Control Panel (Radio Navigation)

Remove decorative strip above radio.

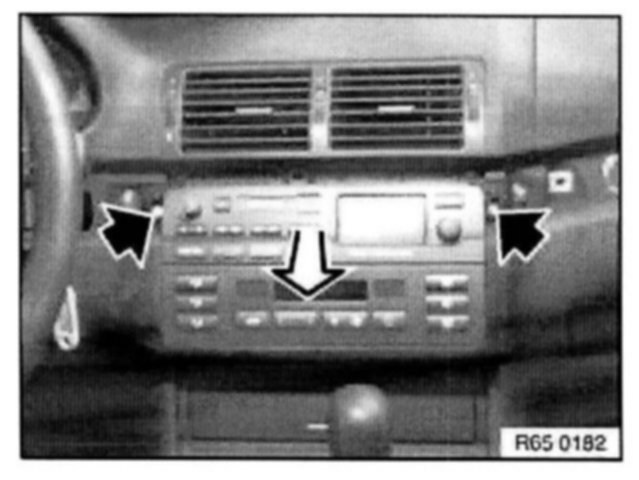

Release screws and pull out radio control panel.

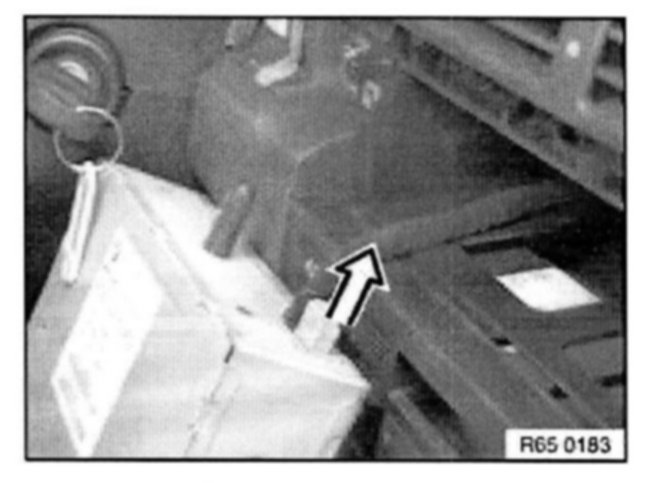

Disconnect plug.
