Replacing Navigation Computer With CD-Drive

Removing And Installing/Replacing Navigation Computer With CD-Drive

Special tools required:
- 65 5 400

Replacement:
Load operating software and carry out coding (refer to Diagnosis and Information System).






Touring:
Remove flap in luggage compartment trim panel on left.

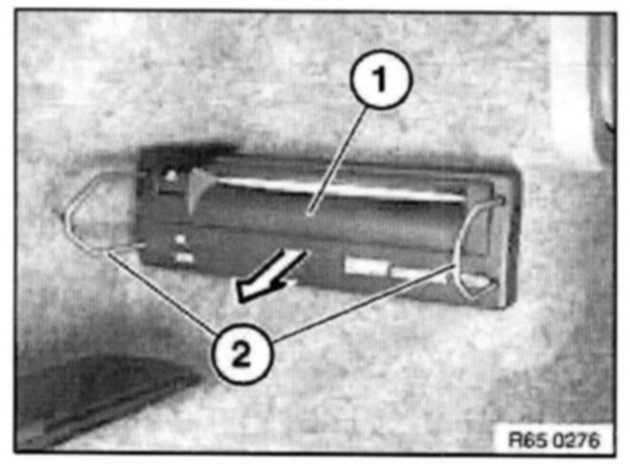

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.
Disconnect plug connections at the back.







Saloon/Sedan, Coupe:
Remove luggage compartment wheel arch trim on left.

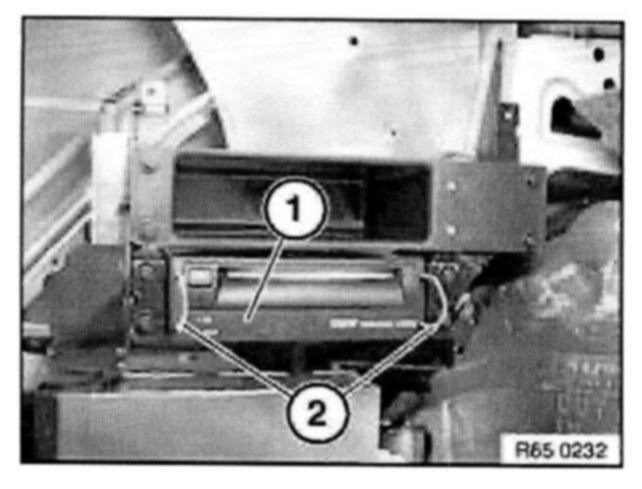

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.
Disconnect plug connections at the back.







Convertible:

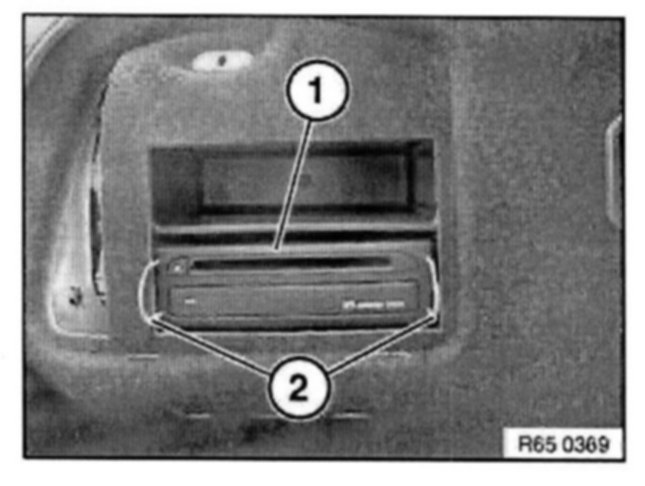

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.
Disconnect plug connections at the back.







compact:
Remove flap in luggage compartment trim panel on left.

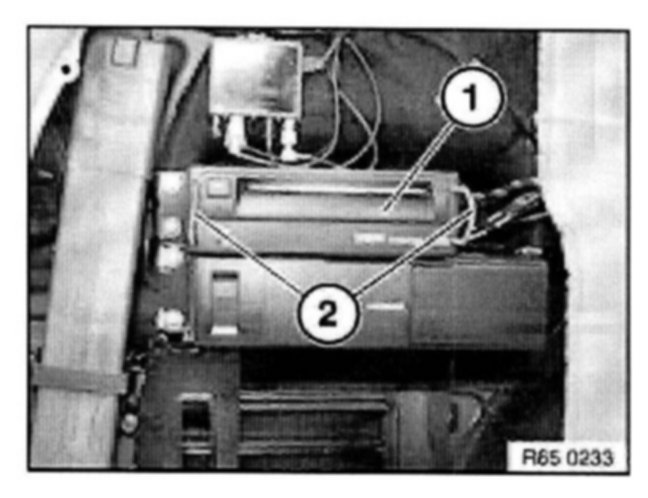

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.
Disconnect plug connections at the back.
